G 2
18 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes
Inspection of the adjustable front fork

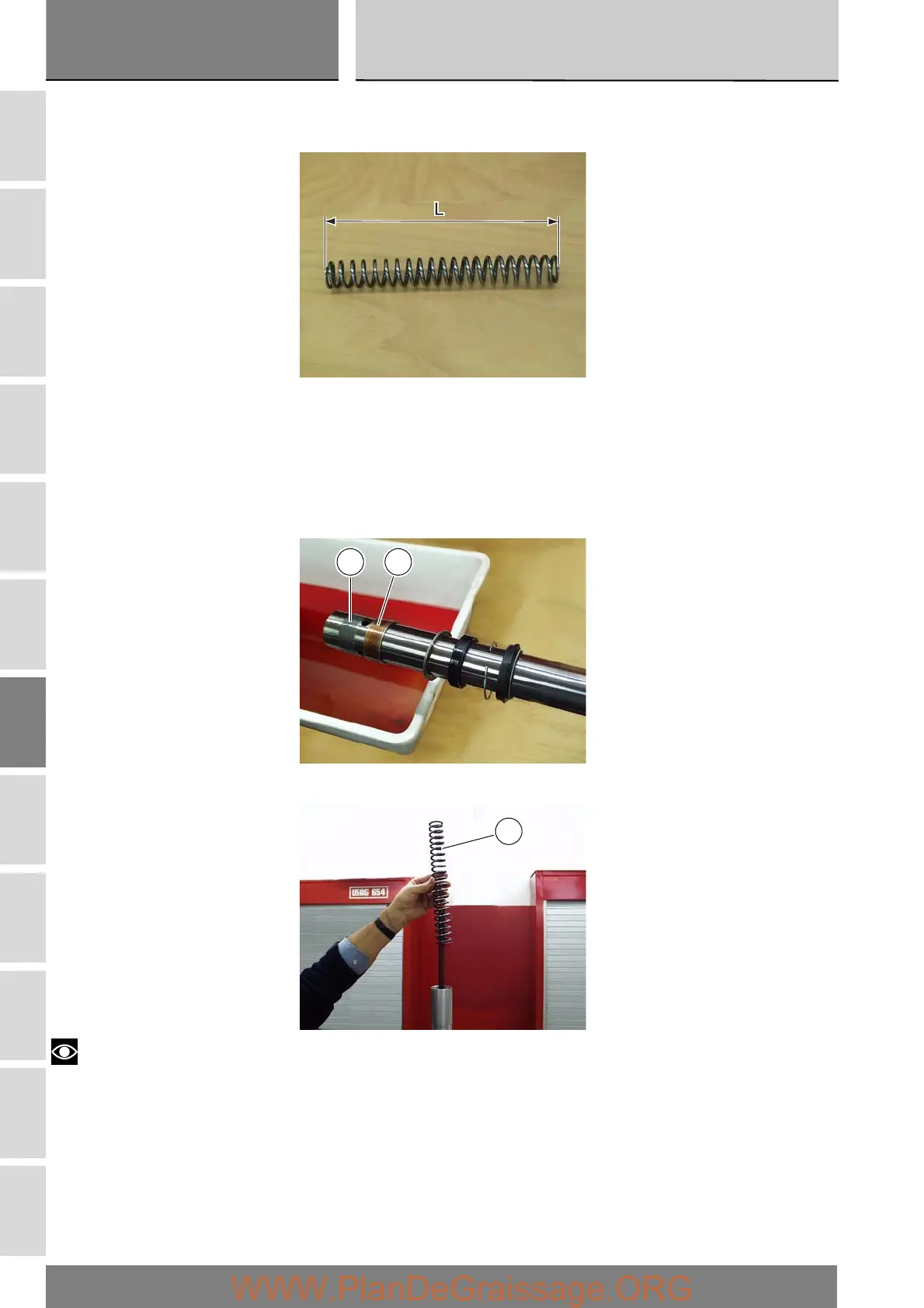

Place the spring on a flat surface and measure the free length (L).
Service limit:
270 mm.
Renew the spring if the length is not within the specified limit.
Inspect the outer surfaces of both fork inner tubes and the internal surfaces of both outer tubes. They must be free from scoring,
steps, or dents.
Check that outer tubes are straight:
maximum permissible error 0.10 mm.
Whenever the inner tube is removed from the outer tube it is good practice to renew the bushes (25) and (27).
Clean off any oil from spring (10) and upper spacer (11) before assembly.
Notes
Install the spring (10), ensuring that the end with tighter coils is towards the bottom of the fork.
Fit the following components:
spring (10),
- upper spacer (11),
- spacer (12),
- washer (13).
27 25
10
