G 2
171098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes
Important

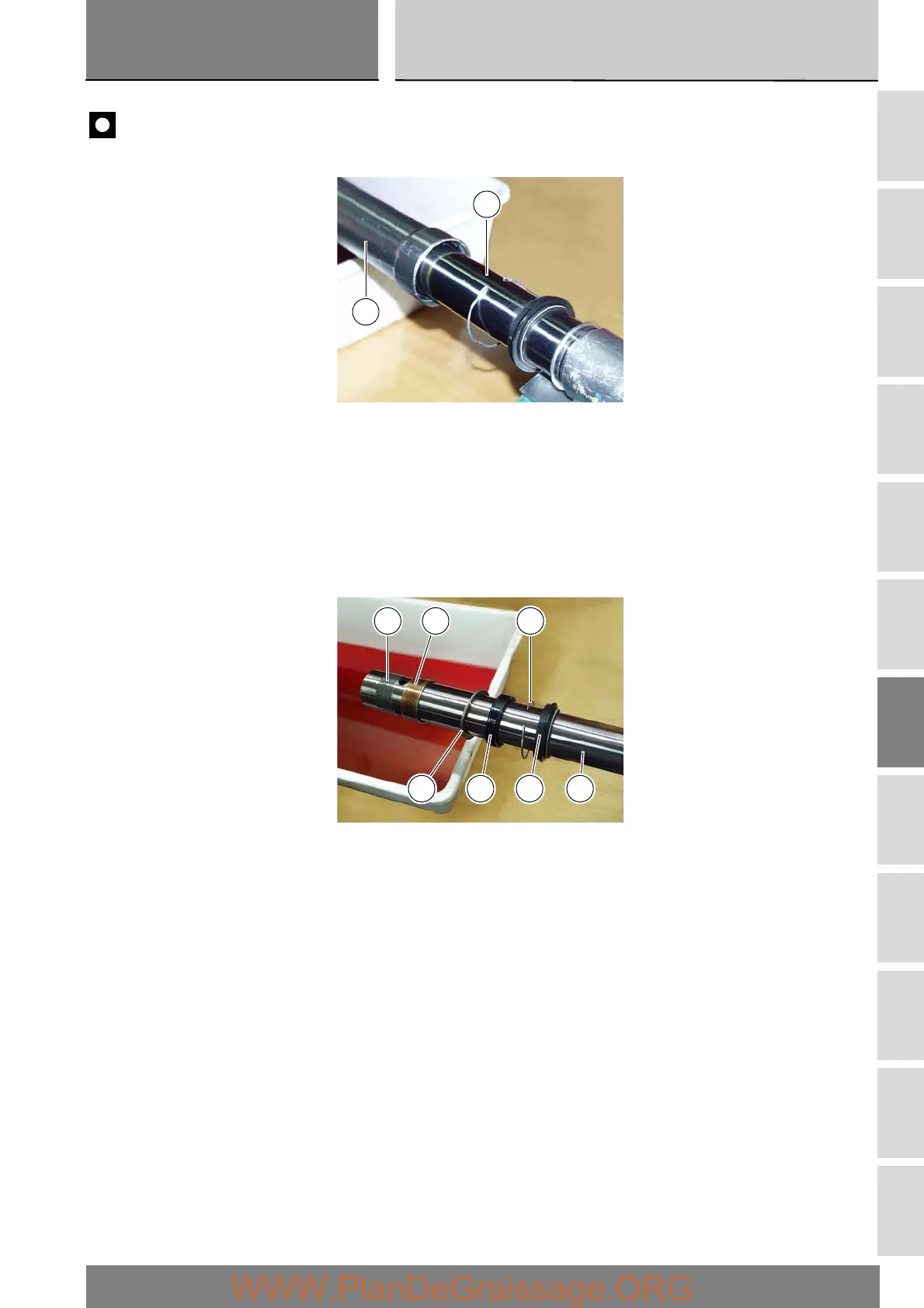

Take care not to damage the outer tube (26) or inner tube (21).
To separate the outer tube (26) from the inner tube (21), pull the inner tube sharply outwards repeatedly to gradually displace the
bottom bush (25).
Insert a screwdriver in the slit in the top bush (27) and open it up sufficiently to slide the bush off the inner tube.
Remove the following parts from the inner tube (21):
- bottom bush (25)
- ring (24)
- oil seal (23)
- circlip (29)
- dust seal (22)
21
26
27 25
24 23 22 21
29
