section
G 8
62 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes
Inspecting the final drive

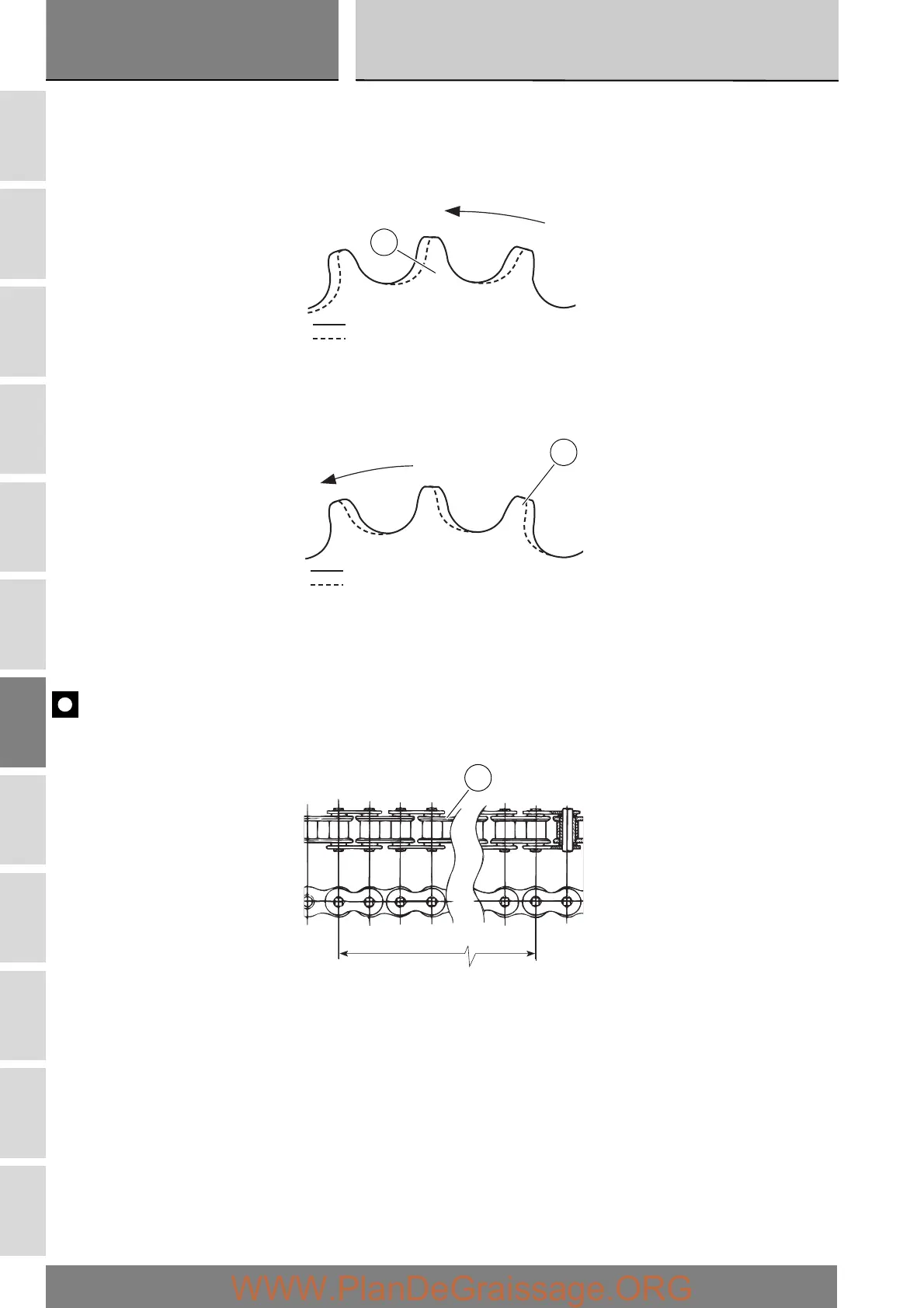

To check wear of the final drive, carry out a visual inspection of the front sprocket (3) and rear sprocket (7). If the teeth are found
to worn as shown in the figure (dotted line), the sprocket must be renewed.
To check the amount of wear on the chain (4), keep the chain taut and measure 16 links.
If the length (L) is greater than 256.5 mm, the chain should be renewed.
Important
The rear sprocket (7), front sprocket (3) and chain (4) must all be renewed together.
3
Normal
Worn
7
Normal
Worn
L
4
1
st
2
nd
3
rd
4
th
15
th
16
th
