Engine

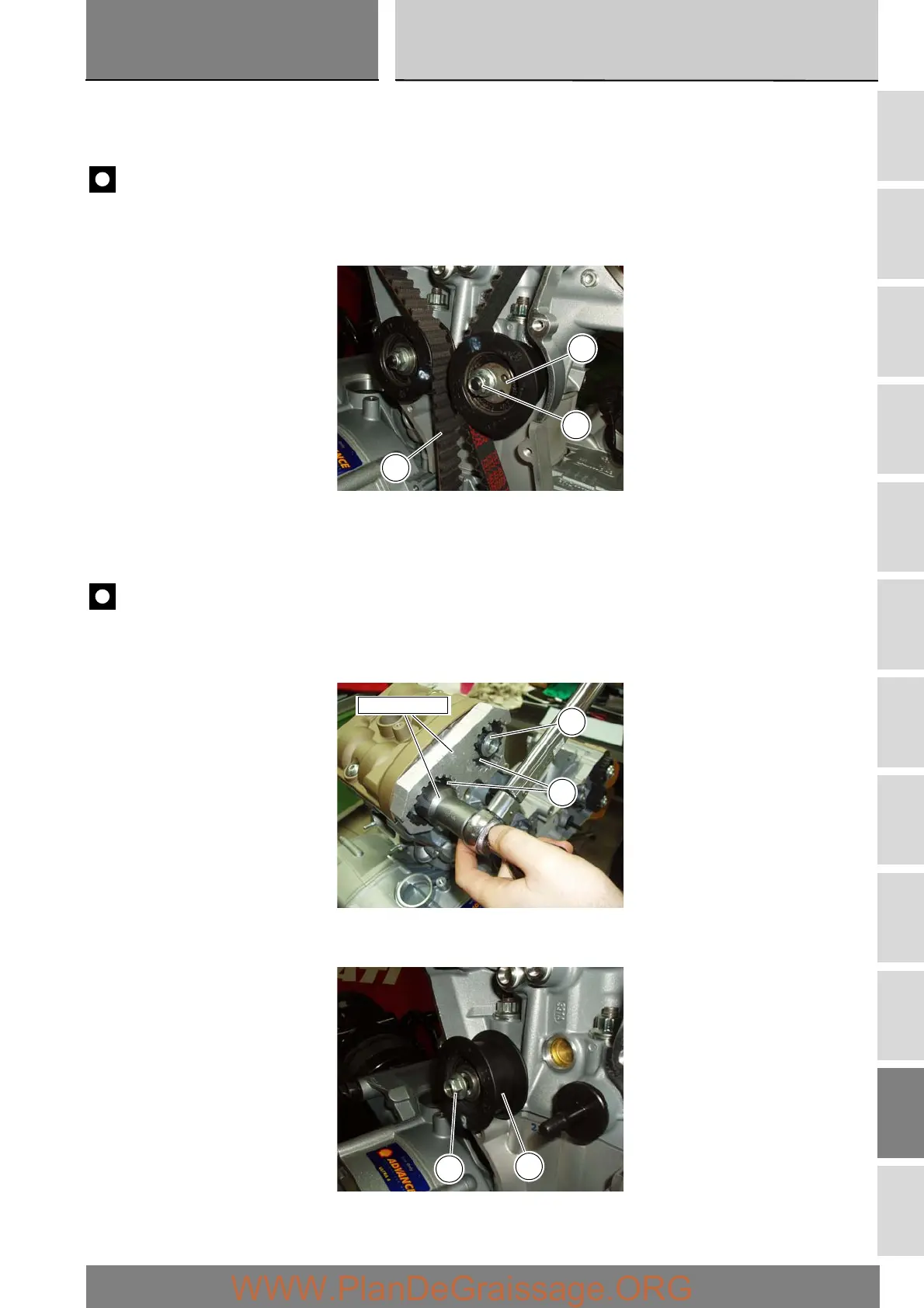

Removal of the tensioner pulley/timing belt
Loosen the nut (8) and remove the tensioner pulley (9) from its mounting stud (12) on the cylinder head.
Remove the timing belt (14) from the horizontal cylinder assembly.
Important
If the belts are to be re-used, mark the direction of rotation with an arrow and also mark the cylinder they belong to.
Repeat the procedure for the other cylinder.
Removal of the camshaft pulleys/idler pulley
Fit the service tool 88713.1806 on the pulleys to hold them against rotation and use the socket supplied with the tool to
slacken off the nuts (21) securing the pulleys.
Important
On reassembly, always use new nuts.
Remove the nuts (21) and the pulleys (11) from the camshafts.
Loosen the nut (8) and remove the idler pulley (13).
Repeat the same procedure to remove the other pulley.
14
8
9
21
11
88713.1806
13
8
