section
G 5
351098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

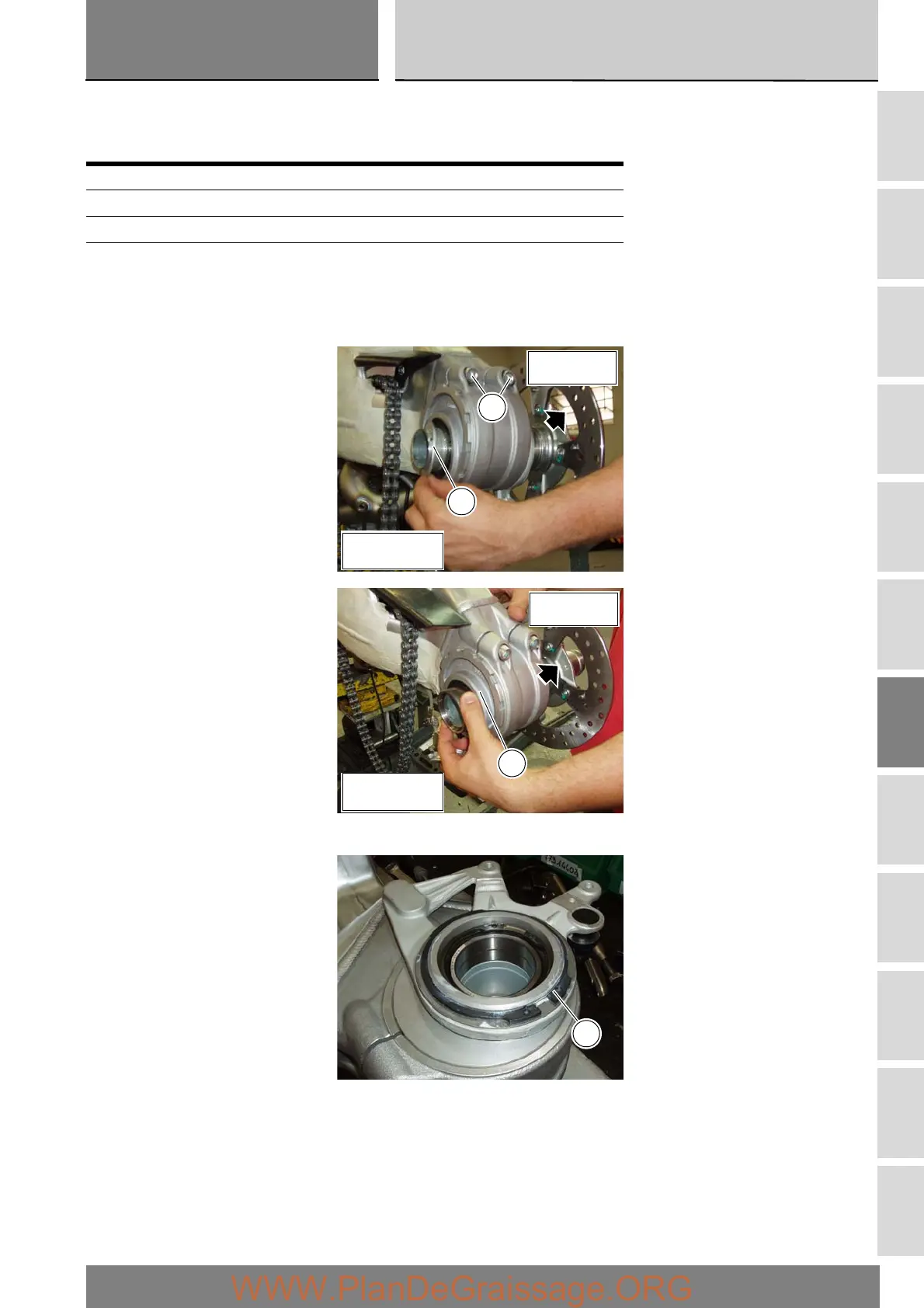

Removal of the rear eccentric hub
Before removing the eccentric hub, you must first remove the following parts:
Slacken off the bolts (3).
Withdraw the spacer (18) and the inner ring (24) on the chain side and withdraw the stub axle complete with brake disc from the
opposite side.
Remove the circlip (13) on the wheel side of the eccentric hub.
Operation Section reference
Remove the rear wheel G 4
Remove the rear sprocket G 8
Remove the rear brake caliper G 6
Chain side
Wheel side
18
3
Chain side
Wheel side
24
13
