section
G 5
36 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

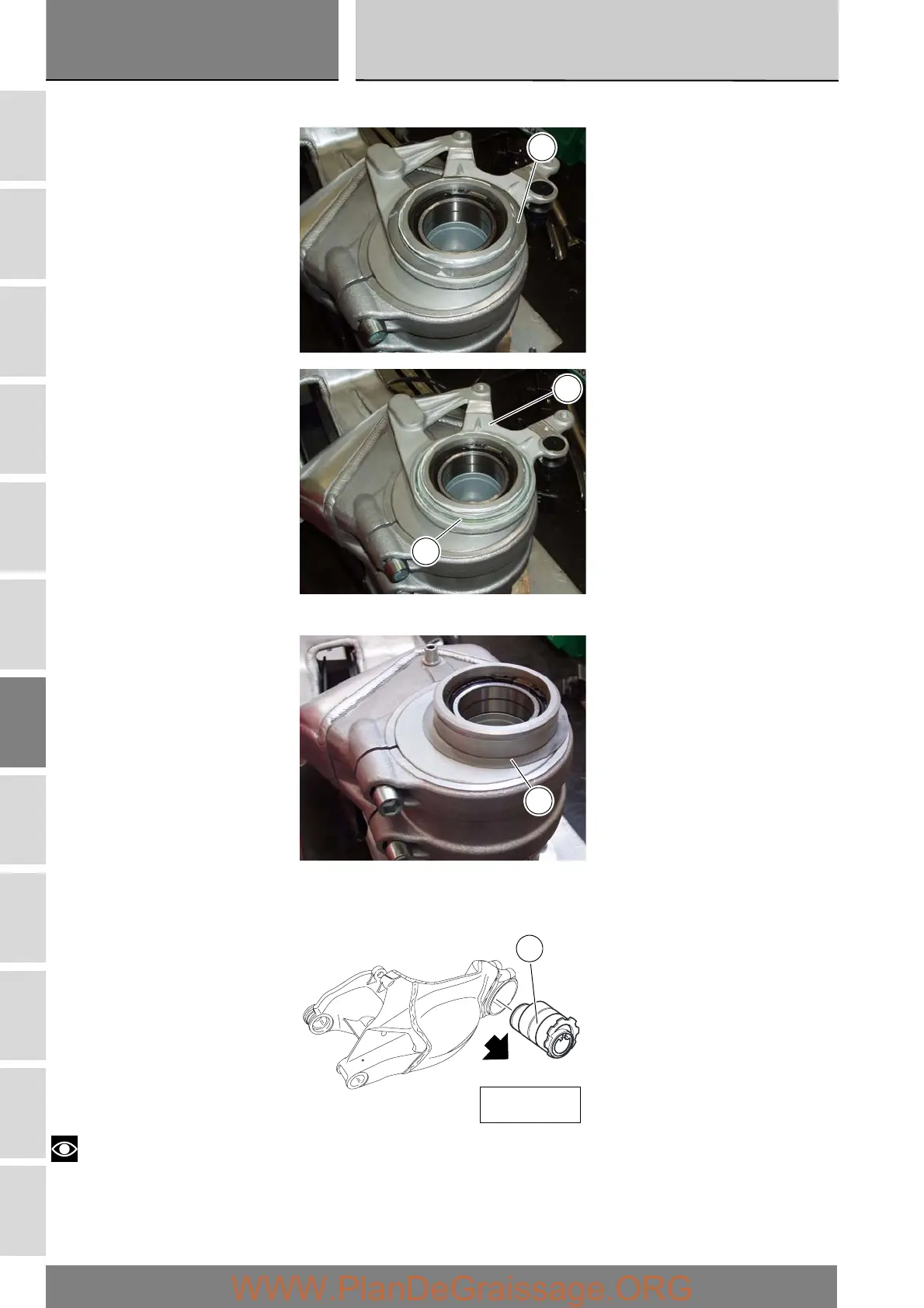

Remove the washer (14), the caliper mounting bracket (16) with the O-rings (15).
Remove the other washer (14).
Withdraw the eccentric hub (17) from the chain side of the swingarm.
Notes
The rear hub is a component particularly critical to the dynamic safety of the motorcycle. For this reason, any overhaul of the
internal components of the hub is strictly forbidden. The hub is available as complete assembly, part no. 819.2.042.1A.
14
16
15
14
17
Chain side
