N 7.1
1451098/1098S - M.Y. 2007 - edition 00
Engine

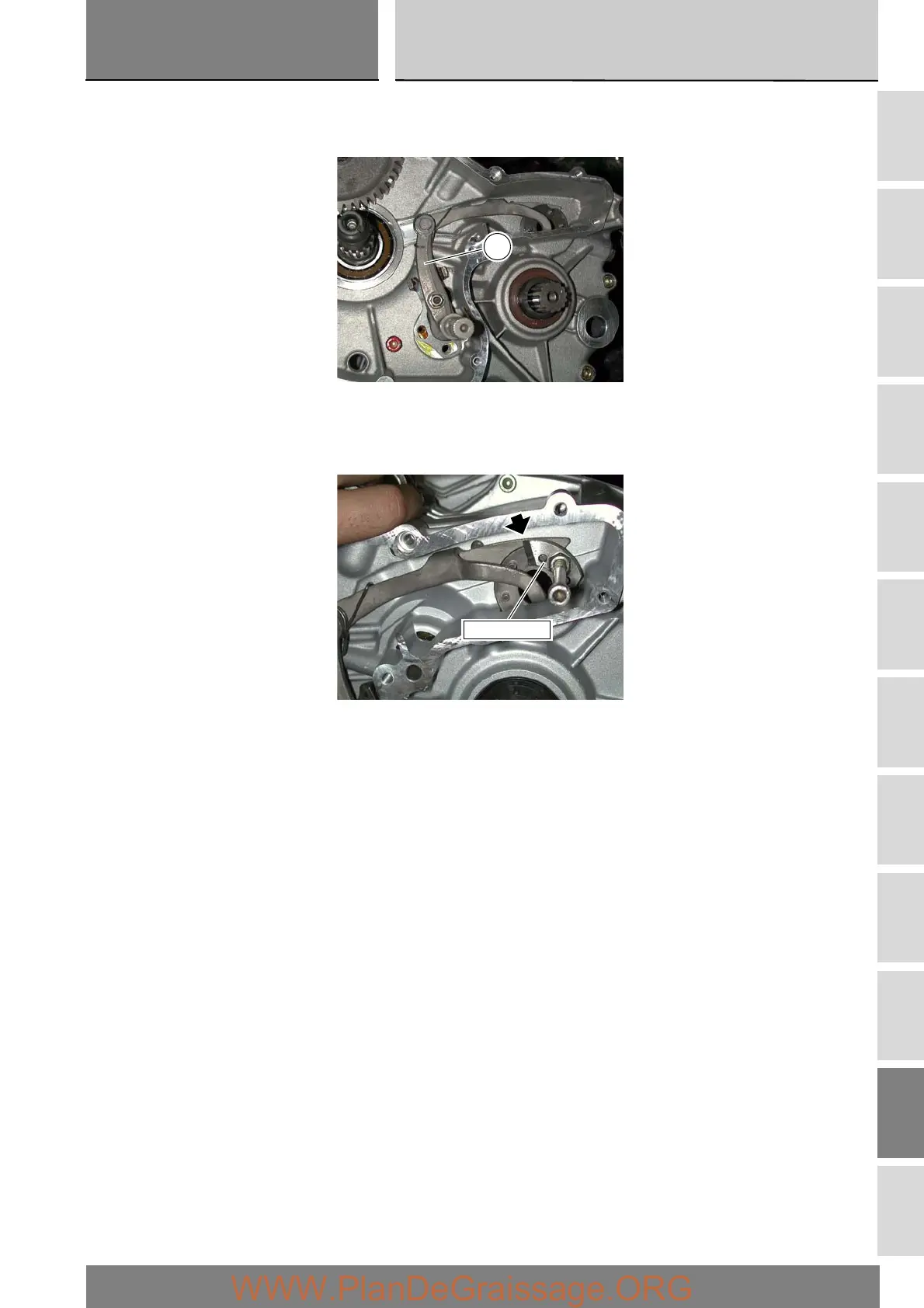

Refitting the gearchange mechanism
Locate the gearchange mechanism (25) with the shaft, spring, and stop plate, on the chain-side crankcase half.
Locate the gearbox drum selector claw in the centre of the drum rollers.
Temporarily fit the gearchange lever (or a service lever) and the engine sprocket, and shift to second gear.
Fit the plate 88713.2827 in the claw shaft pins (see figure).
Align the notch that marks the centreline of the selector claw, with the end of the plate.
25
88713.2827
