N 7.1
146 1098/1098S - M.Y. 2007 - edition 00
Engine

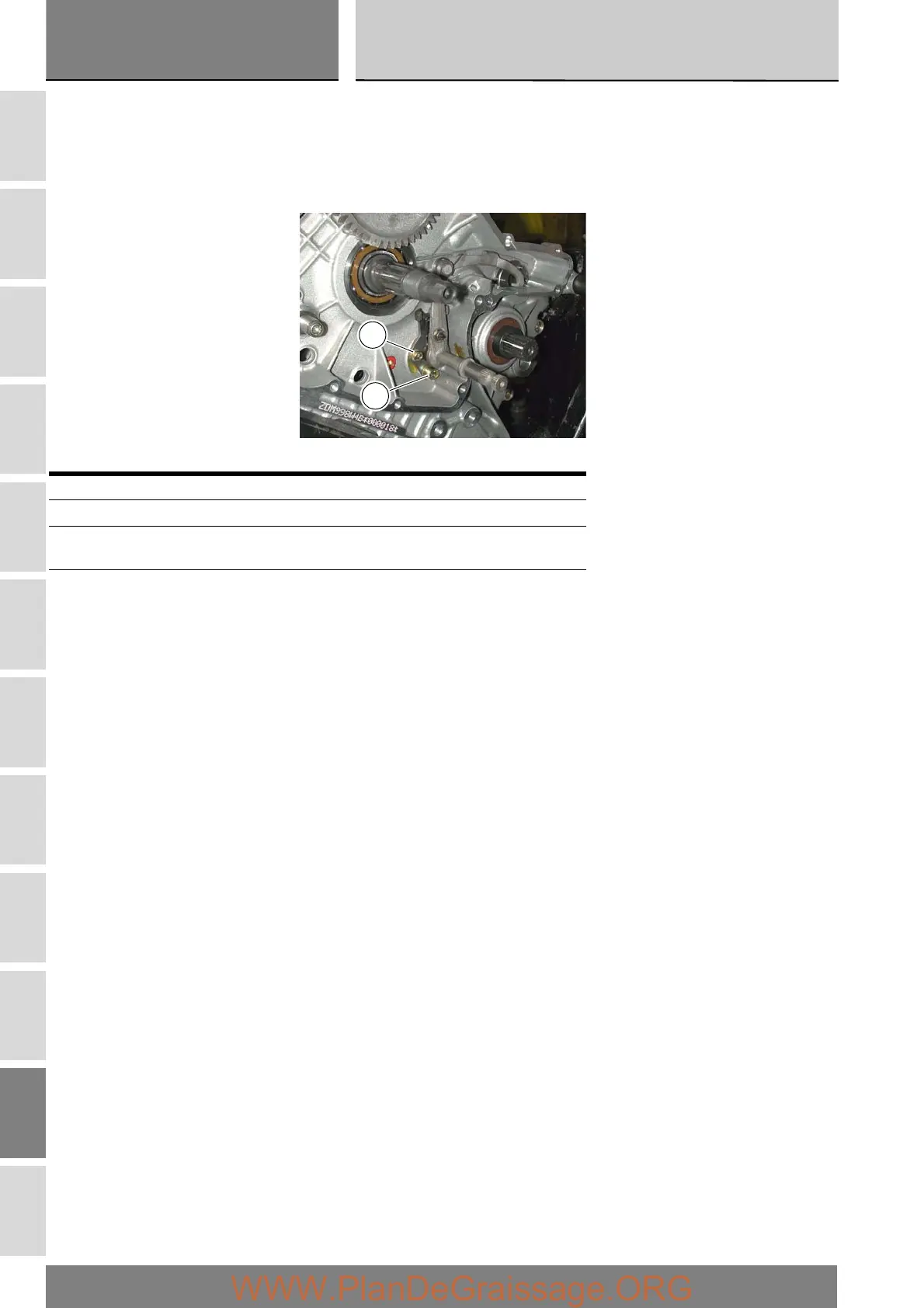

Then tighten the retaining bolts (18) and (20) of the gear selector mechanism to the specified torque (Sect. C 3).
With the gearbox in neutral, check that the lever travel is the same when shifting up and down. The same should apply when a
gear is engaged.
Operate the gearchange lever and turn the sprocket at the same time to check that all the gears engage when shifting up and
down.
Remove the previously installed lever and sprocket
Operation Section reference
Fit the right-hand side crankcase cover N 6.2
Refit the flywheel/alternator assembly and
left-hand side crankcase cover
N8
Install the engine in the frame N 1
18
20
