Frame

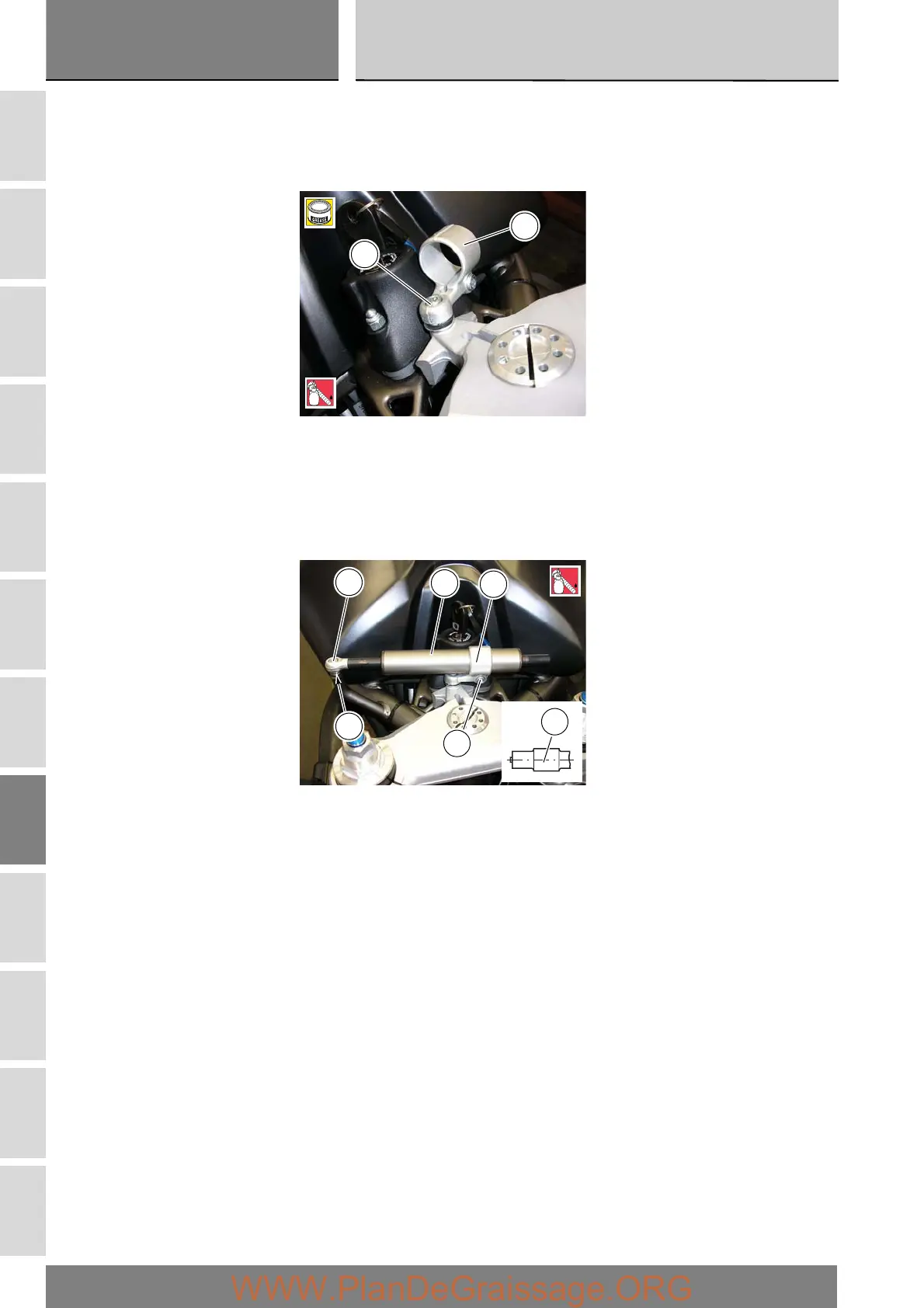

Refitting the steering damper
Lubricate the spacer (9) with the O-ring (8) and fit to the seat on the top yoke.
Apply threalocker to the thread of bolt (3) and insert it in the hole of the mounting clamp (4).
Tighten the bolt (3) on the top yoke to the specified torque (Sect. C 3).
Insert the steering damper (1) in the mounting clamp (4) so that the part with the largest diameter (A) is located in correspondence
with the clamp (4).
Apply threadlocker to the thread and fit the bolt (5) in the mounting clamp.
Tighten to the specified torque (Sect. C 3).
Insert the bolt (2) into the damper's ball joint and fit spacer (7) under the bolt’s head.
Apply the recommended threadlocker to the thread of the bolt (2) and tighten it to the specified torque (Sect. C 3) in the threaded
hole on the frame.
3
4
A
2
LOCK
2
4
1
5
7
A
2
LOCK
