311098/1098S - M.Y. 2007 - edition 00
Frame
Reassembly of structural components and the frame

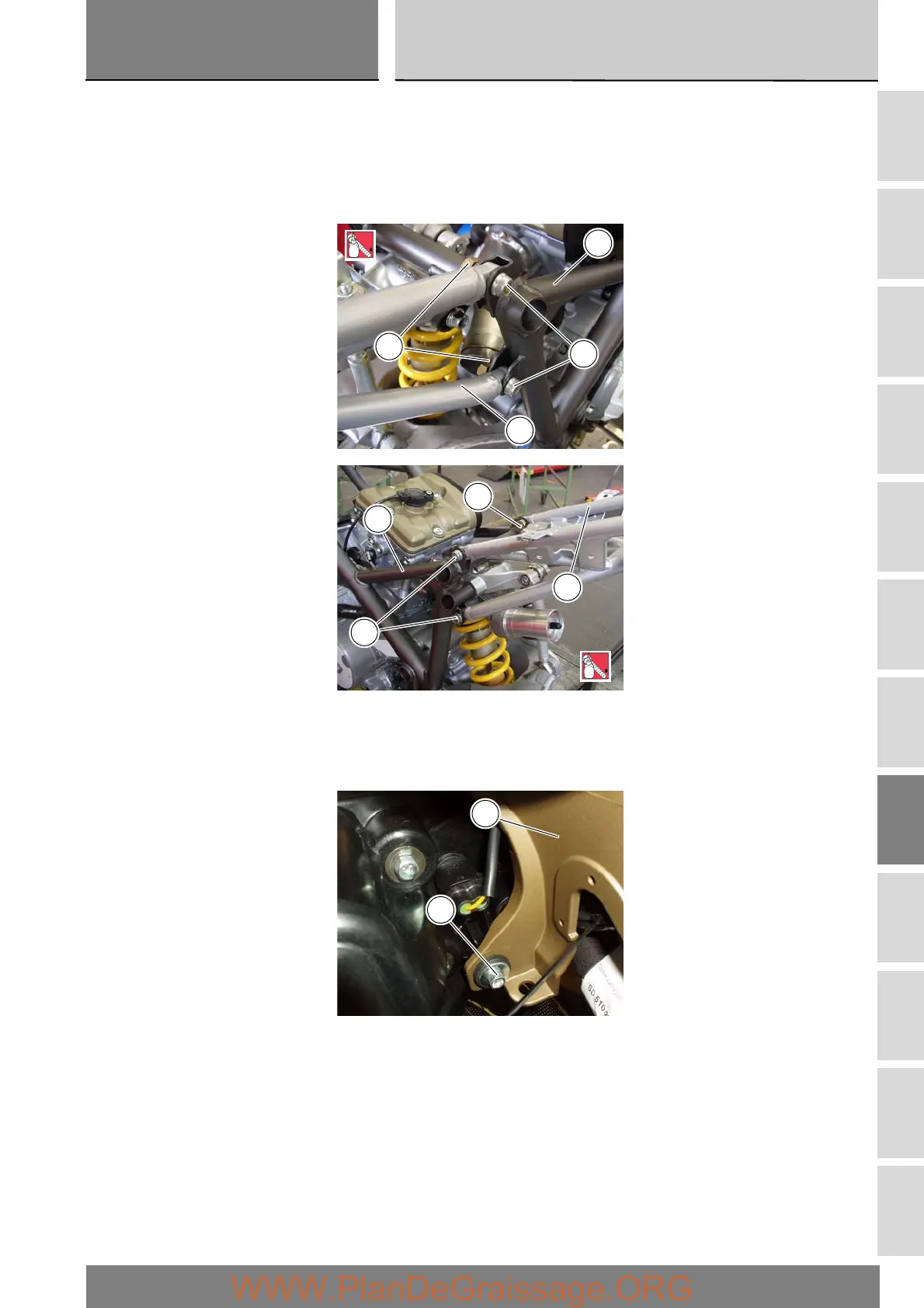

Refitting the rear subframe
Locate the rear subframe (3) on the mountings on the frame (2).
Insert the bolts (5) from the outside and secure on inside with the nuts (6), applying the specified threadlocker.
Tighten the bolts (5) to the specified torque (Sect. C 3).
Reconnect the wiring connections (Sect. P 1) and refit the silencer (Sect. L 8).
Refitting the headlight assembly
Fit the headlight (7), fit the retaining bolts (12) and tighten to the specified torque (Sect. C 3).
2
LOCK
6
5
2
3
5
2
6
3
2
LOCK
7
12
