Ducati 1098 2007 - Removal of the Steering Damper

A
B
C
D
E
F
G
H
L
M
N
P
section
H 3
151098/1098S - M.Y. 2007 - edition 00
Frame
Removal of the steering damper

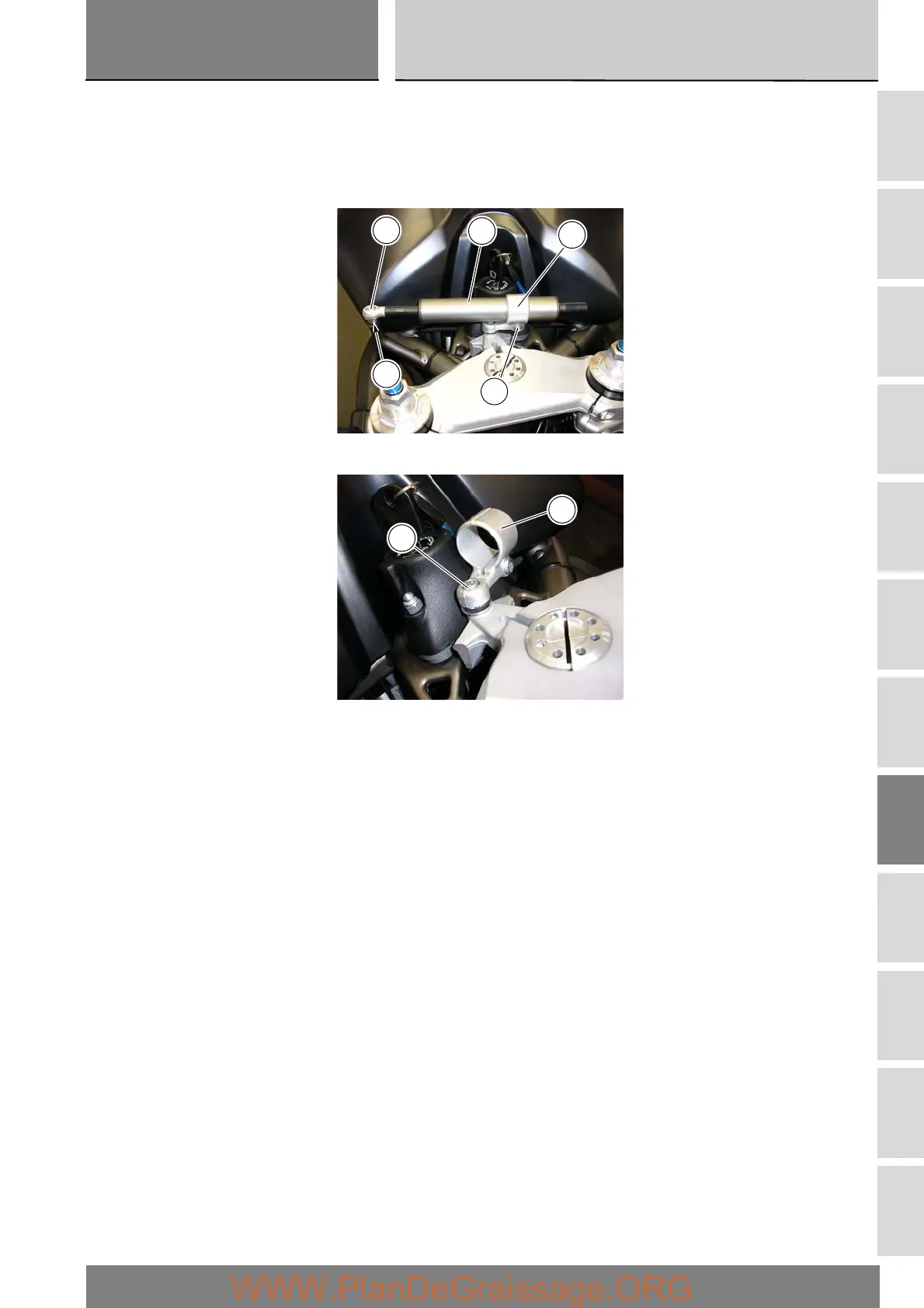

Unscrew and remove the bolt (2) securing the steering damper rod (1) to the frame.
Loosen the bolt (5) securing the steering damper to the mounting clamp (4) on the top yoke.
Remove the steering damper (1) from the mounting clamp (4).
Recover the spacer (7).
Loosen the bolt (3) securing the mounting clamp (4) to the top yoke and remove the clamp, the O-ring (8) and the spacer (9).
