Ducati 1098 2007 - 4 - Rear brake control

A
B
C
D
E
F
G
H
L
M
N
P
section
F 4
191098/1098S - M.Y. 2007 - edition 00
Controls - Devices

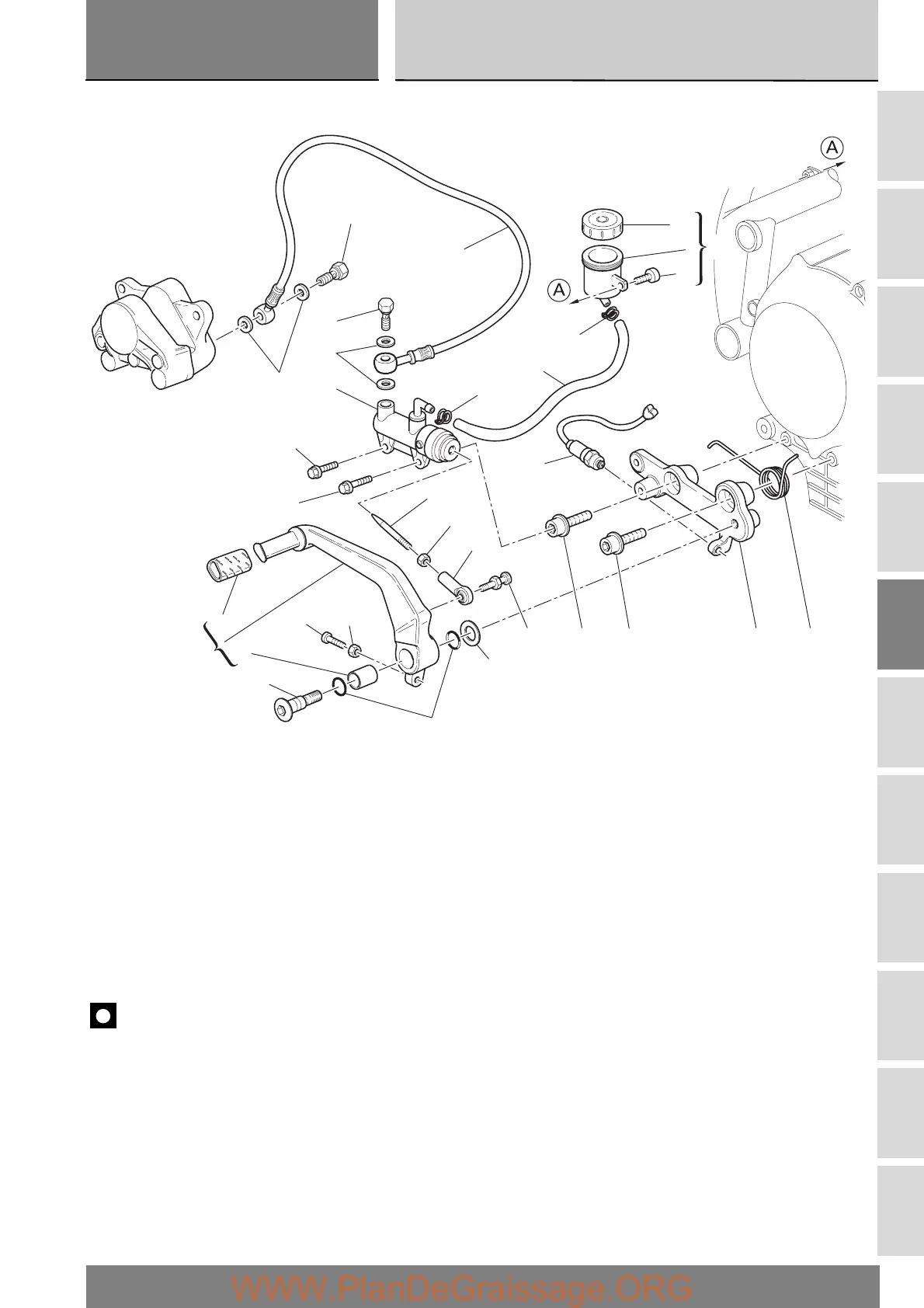

4 - Rear brake control
1 Support
2Bolt
3Washer
4Spring
5 Switch
6 Brake lever pedal
7Bolt
8 Adjuster screw
9 Pedal pivot bolt
10 Bush
11 O-ring
12 Pedal rubber
13 Pivot bolt
14 Banjo bolt
15 Nut
16 Rear brake master cylinder
17 Clamp
18 Pushrod
19 Bolt
20 Ball joint
21 Hose
22 Banjo bolt
23 Sealing washer, thickness 1
24 Bolt
25 Fluid reservoir assembly
26 Plug
27 Rear brake hose
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
7
19
22
23
16
17
5
14 2 1
26
24
27
9
8
3
15
11
12
6
10
23
22
18
15
20
21
17
25
13 4
1
