14 1098/1098S - M.Y. 2007 - edition 00
Fuel / Exhaust System

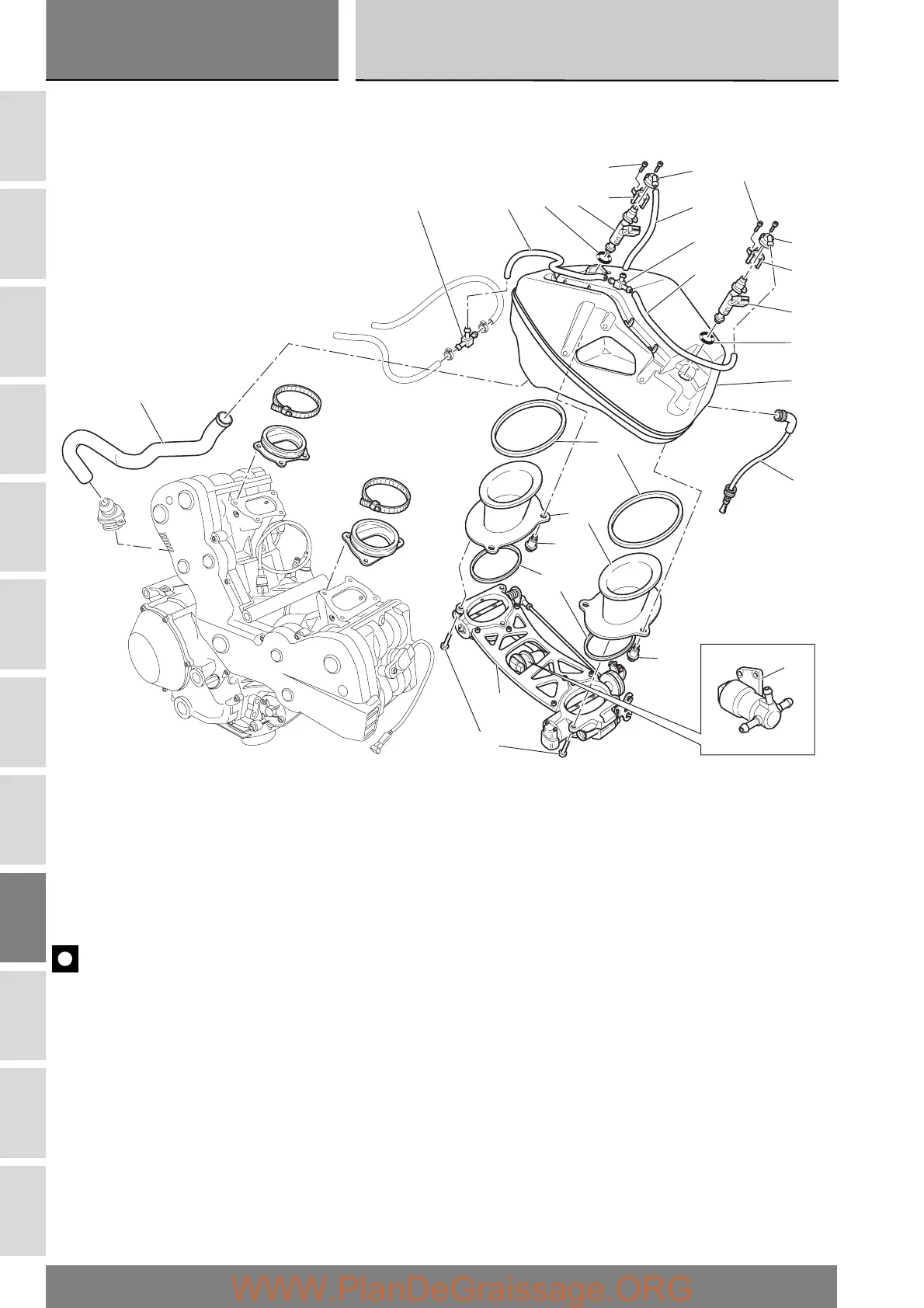

6 - Airbox - Throttle Body
1 Stepper motor
2O-ring
3Bolt
4 Fuel injector support
5Union
6Hose
7 Air intake funnel
8 Special screw
9Seal
10 Seal
11 Throttle body assembly
12 Bolt
13 Injector
14 Hose (vertical)
15 Union
16 Hose (horizontal)
17 Fuel injector cap
18 Drain hose
19 Hose
20 Airbox
Important
Bold reference numbers in this section identify parts not shown in the figures next to the text. Refer to the exploded view
diagram.
17
14
15
16
33
4
17
13265
4
13
2
20
19
18
9
7
10
8
12
11
1
8
1
