section
N 7.1
140 1098/1098S - M.Y. 2007 - edition 00
Engine

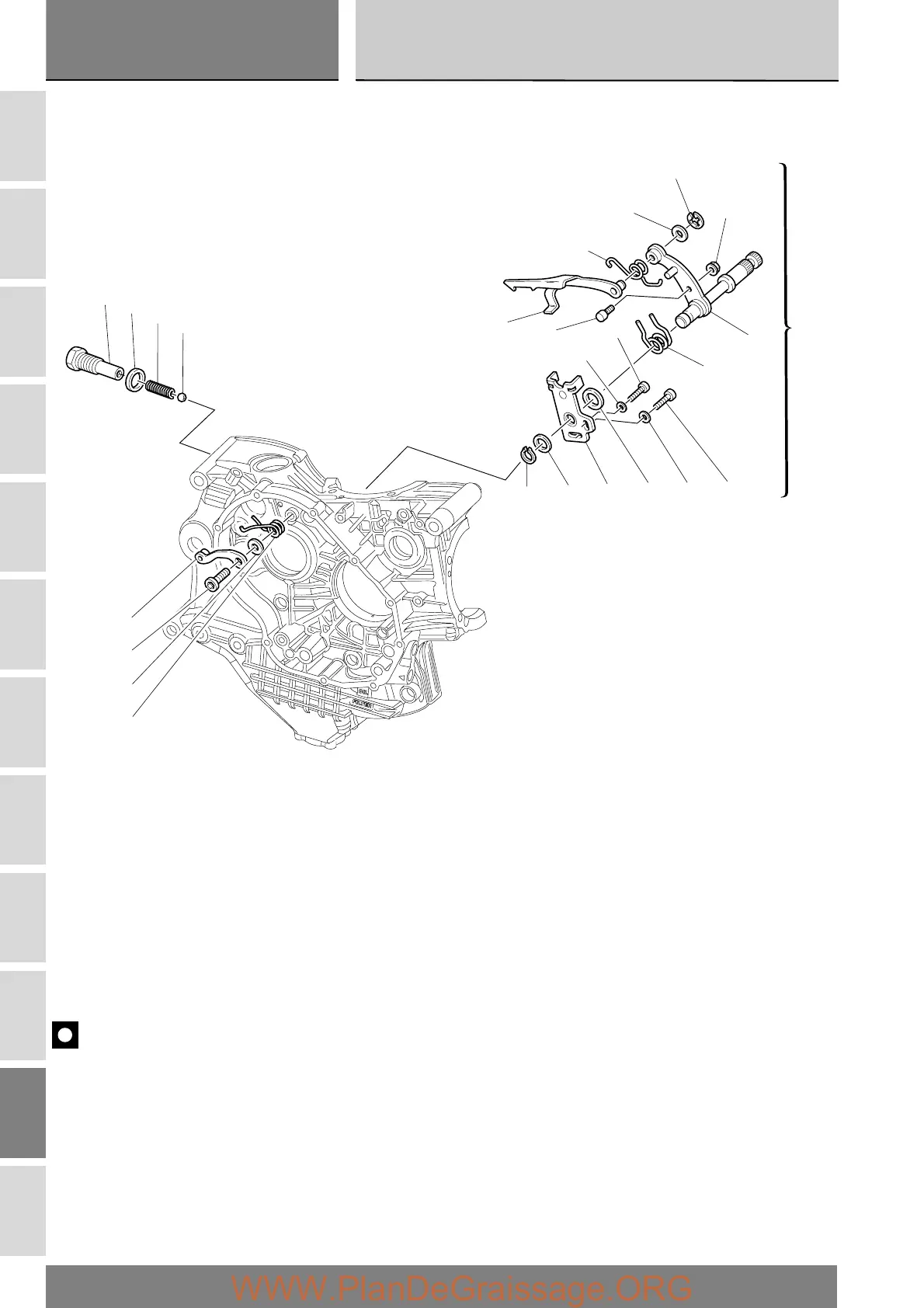

7.1 - Gearbox assembly: gearchange mechanism
1 Return spring
2 Washer
3 Special screw
4 Gear pawl assembly
5 Interlock plunger holder
6Seal
7 Detent ball spring
8Ball
9 Circlip
10 Selector claw return spring
11 Shim, thickness 0.5
12 Shim, thickness 0.2
13 Ring
14 Nut
15 Selector drum control fork
16 Gearchange lever pin
17 Shaft with gearchange lever arm
18 Gearchange lever arm return spring
19 Bolt
20 Washer
21 Bolt
22 Washer
23 Locating ring
24 Stop plate
25 Shim, thickness 0.2
26 Shim, thickness 0.5
27 Gearchange mechanism
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
5
6
7
8
10
11
12
17
16
25
13
14
15
9 24 23 22 21 20
19
18
4
3
2
1
1
