Engine
Removal of the camshafts

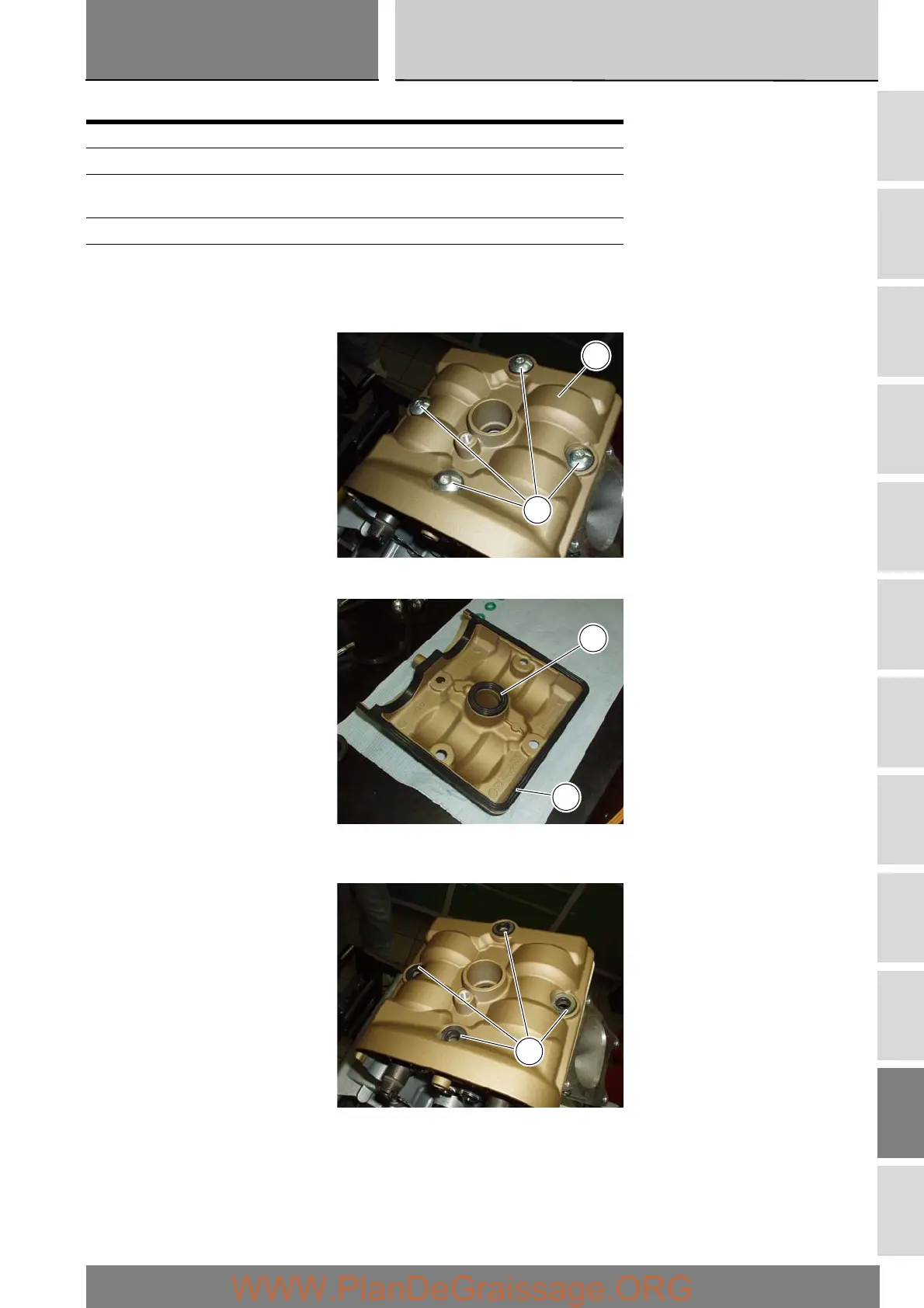

Unscrew and remove the screws (7) in the rocker covers.
Remove the rocker cover (6).
Remove the gaskets (4) and (9).
Repeat the same procedure for the other rocker cover.
Remove the seals (8) on the rocker cover.
Operation Section reference
Remove the engine from the frame N 1
Remove the timing belt covers, the timing
belts and timing belt pulleys
N4.2
Remove the engine lubrication system N 2.1
Remove the coils M 3
7
6
9
4
8
