Engine

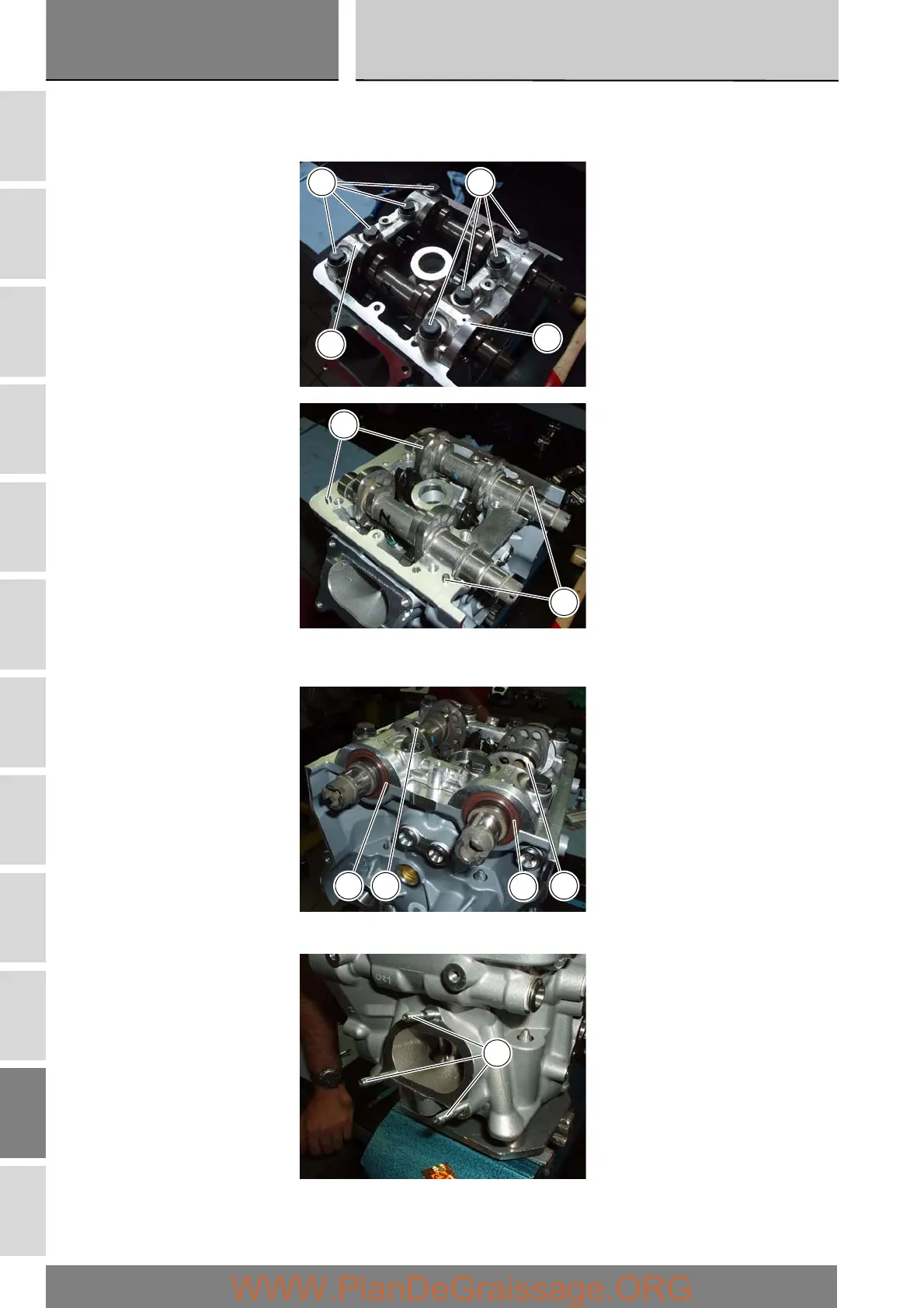

Undo the bolts (3) securing the camshaft supports.
Withdraw the camshaft supports (22) and (23) straight out from the cylinder head, taking care not to damage the machined faces
and locating dowels (11).
Remove the exhaust camshaft (14) and the intake camshaft (15), and slide off the seal rings (17) on their ends.
Repeat the same procedure for the other cylinder head.
If necessary, unscrew the stud bolts (2) from the cylinder heads.
33
22
23
11
11
14
17
1517
2
