N 9.1
1911098/1098S - M.Y. 2007 - edition 00
Engine
Refitting the timing gears
Before refitting, check the wear on the timing gear pair (13) and renew if necessary.
Important
The timing gears (13) must always be renewed as a pair.
Refitting is the reverse of removal.
Warning

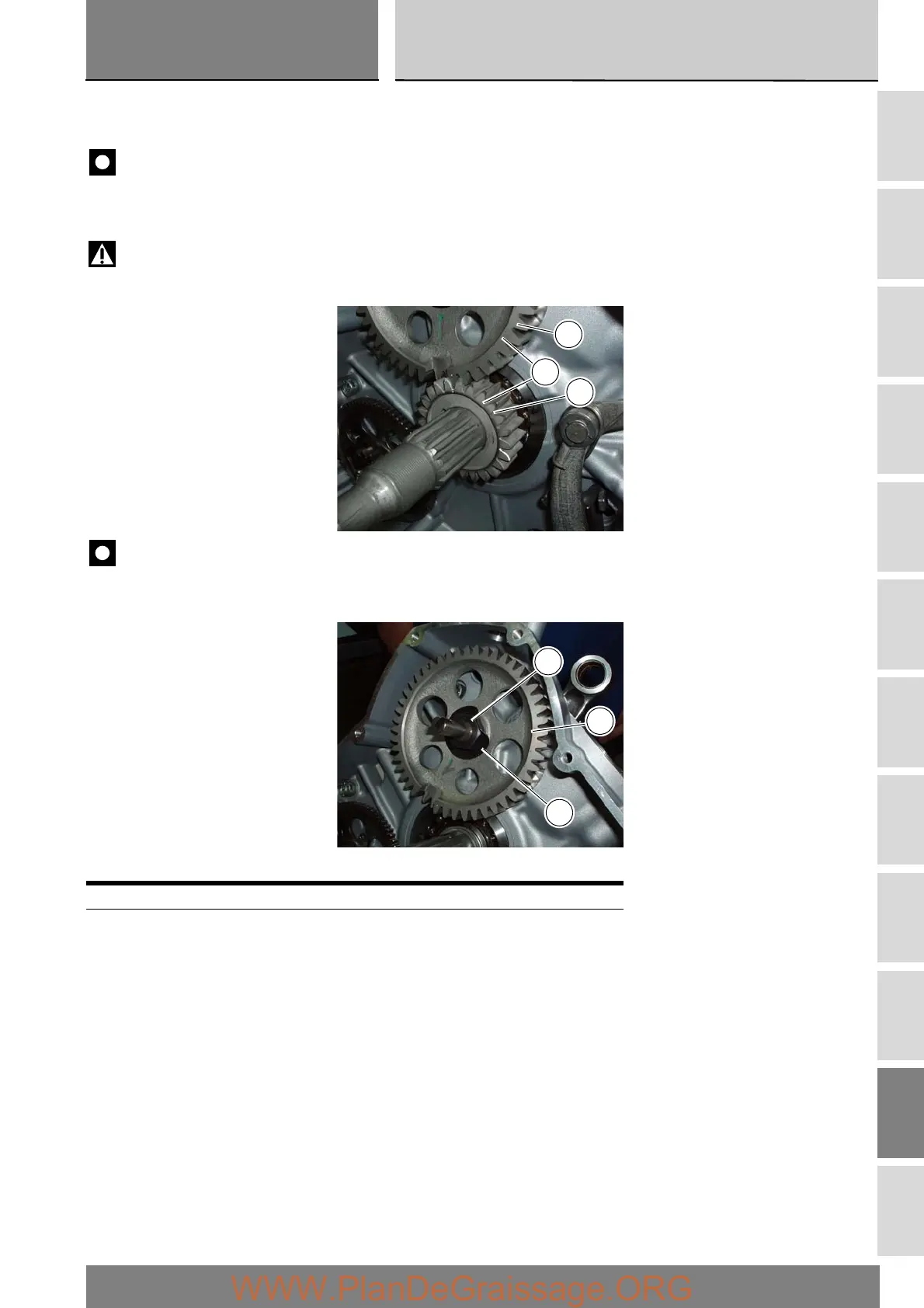

When installing the driven gear (B), align the timing mark with that on the driving gear (A).
Important
On completion of the refitting operations, check that tab washer (12) is staked against nut (11) in such a way as to prevent the
nut from working loose.
Operation Section reference
Refit the left-hand crankcase cover and
alternator assembly
N8
13
B
A
B
11
12
