Engine
Disassembly of the oil pump

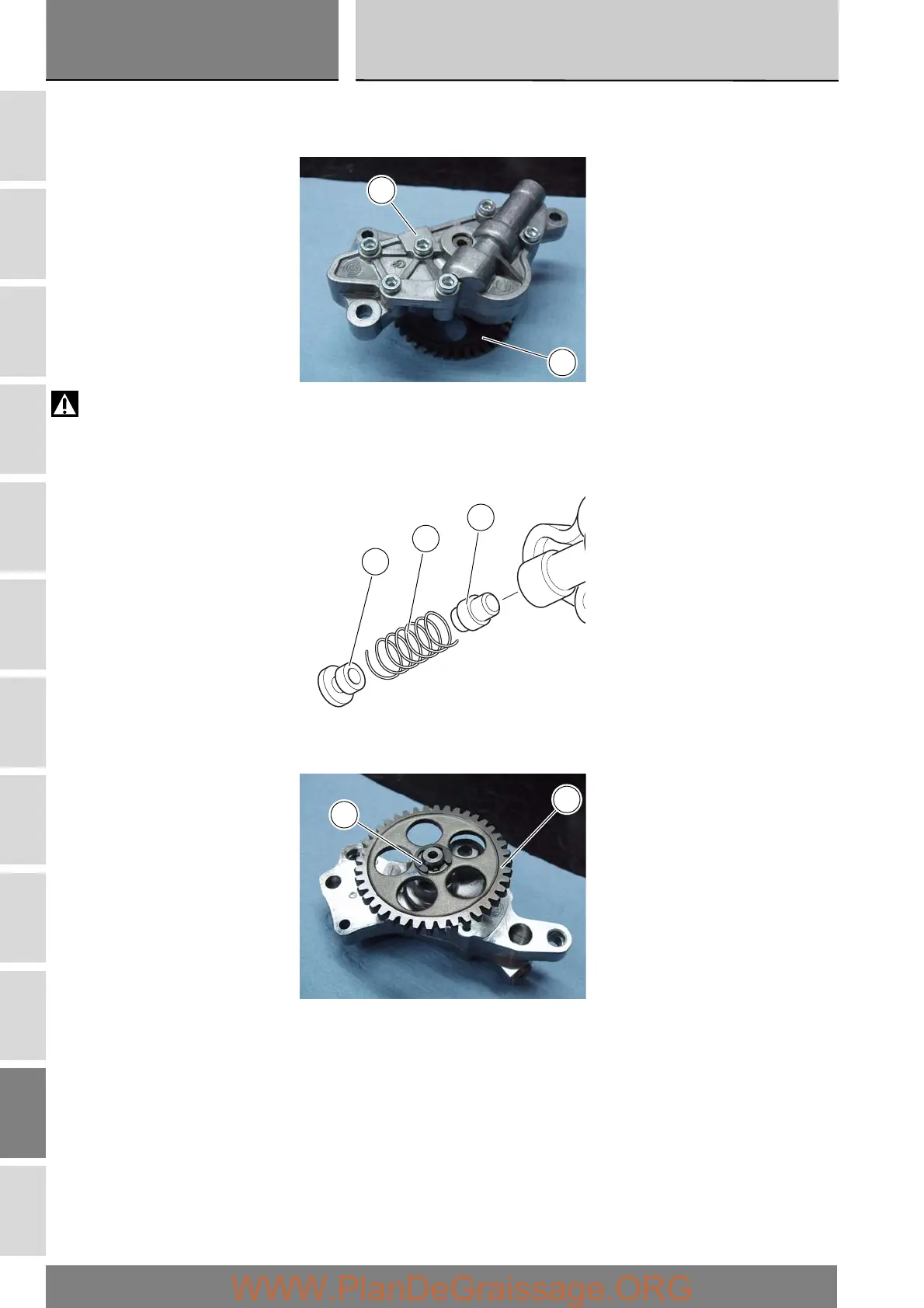

Hold the oil pump (1) in a vice taking care not to damage the drive gear (12).
Warning
Make sure that vice jaws are faced with soft material.
Remove plug (14) and extract the spring (16) and by-pass valve (17).
Check the condition of the above components.
Remove the circlip (6) and withdraw the pump drive gear (12).
12
1
17
14
16
12
6
