Resetting the throttle position sensor (TPS)
The linear throttle potentiometer has no facility for positioning adjustment: to ensure that the system functions correctly, proceed
as follows:
Warning
This procedure must precede the first start-up of the vehicle after replacement of the throttle body, the ECU or the wiring.
Make sure the butterfly valve is seated against the stop (throttle twistgrip fully closed).
In this position you can teach the ECU the angle of the position sensor. To do this, use the DDS tester and follow the procedure
described below.
Raise the fuel tank (Sect. L 2, Removal of the fuel tank).

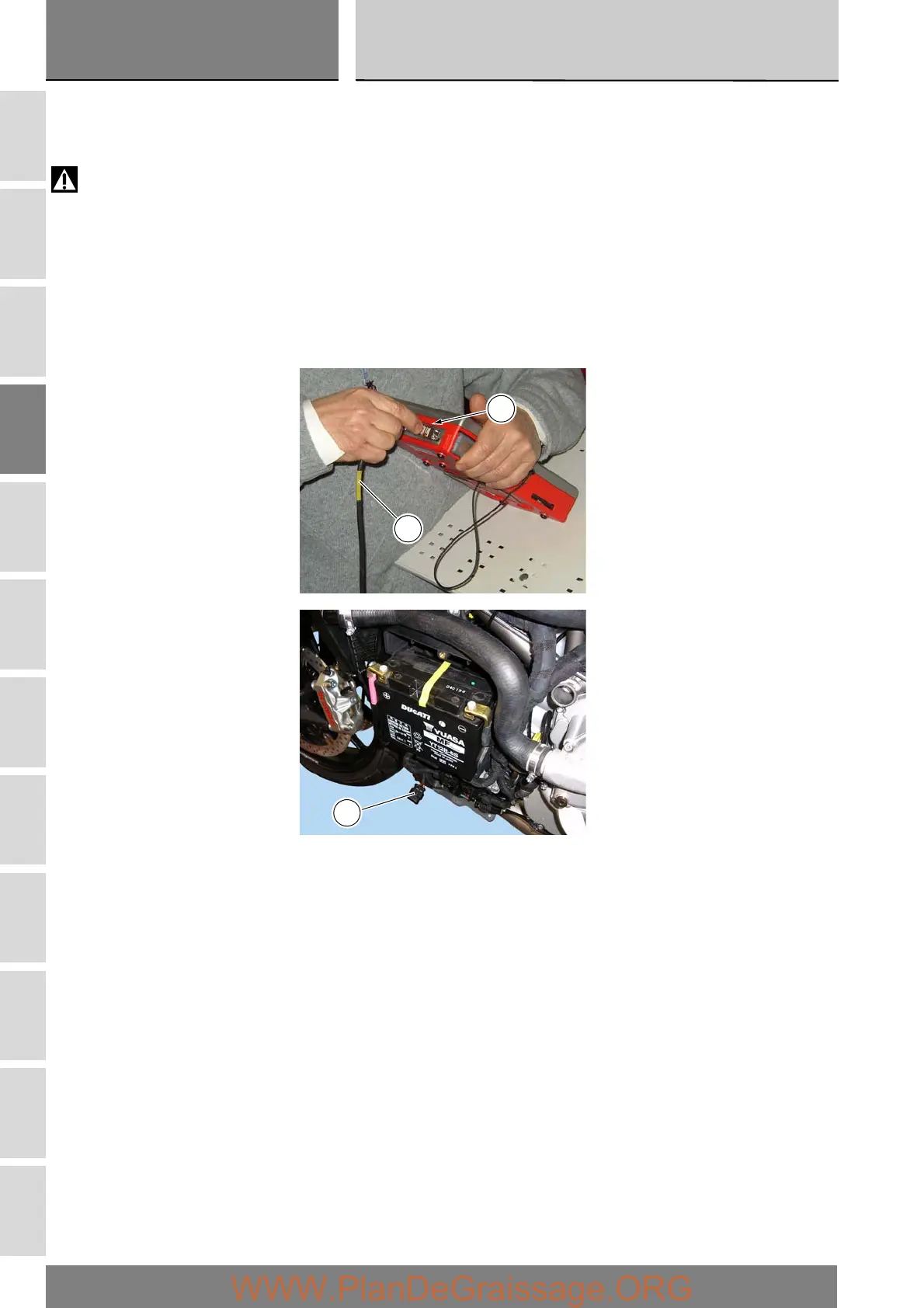

Switch on the DDS tester (1); see paragraph entitled “Tester power supply”.
Connect the power and diagnostics cable (2) to the diagnostics connector (A) on the tester and to the diagnostics socket (B) on
the motorcycle.
A
2
B
