4 1098/1098S - M.Y. 2007 - edition 00
Fuel / Exhaust System
Removal of the fuel tank
Remove the seat and the side panels (Sect. E 3, Removal of the seat - Removal of the side panels and seat cowling).

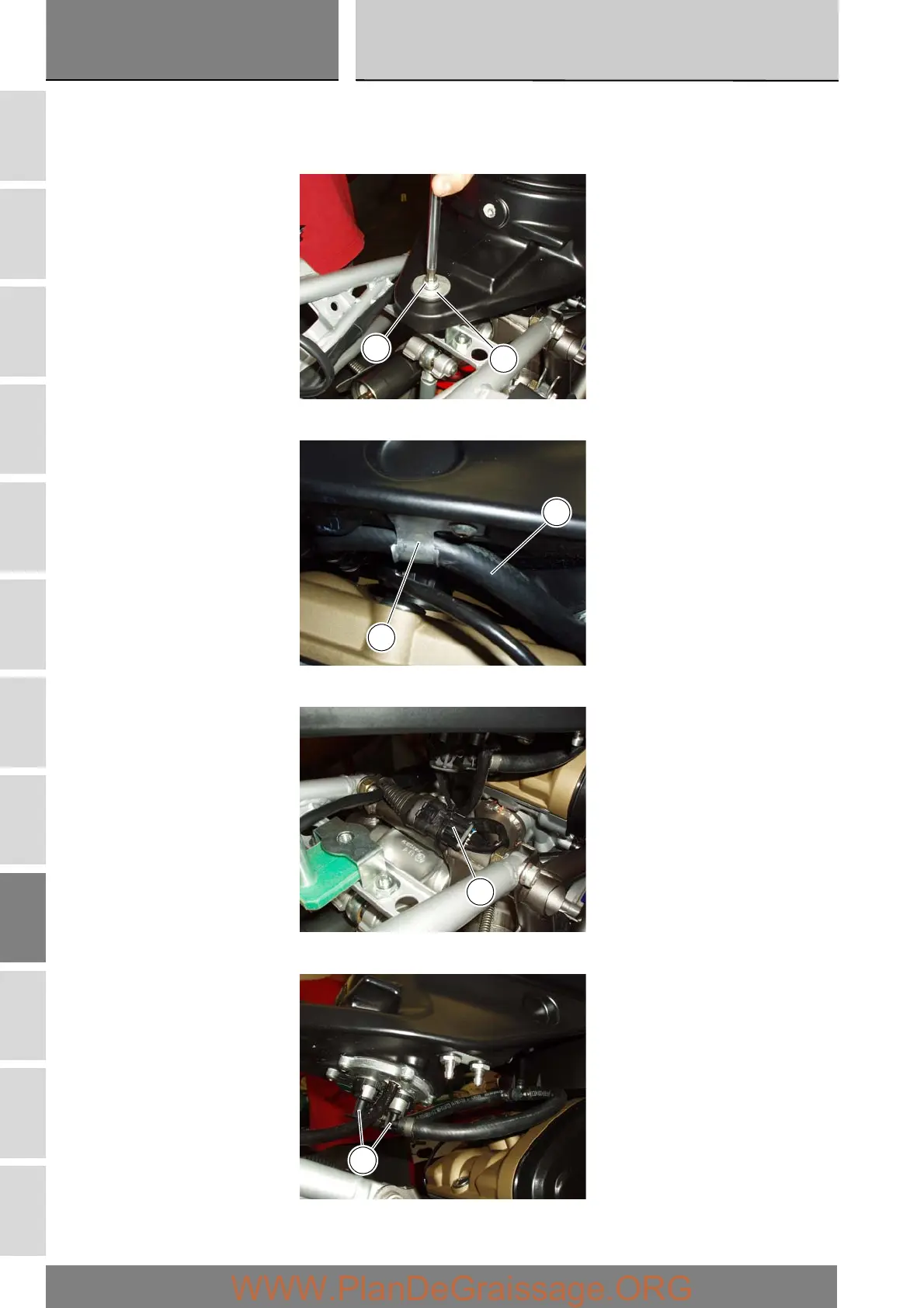

Remove the bolt (13) and recover the washer (12).
Detach the hoses (34) and (35) from respectively plates (32) and (31).
Raise the fuel tank and disconnect the fuel level sensor (A) from the main wiring loom.
Disconnect the quick-release fittings (24) from the flange.
