N 4.4
66 1098/1098S - M.Y. 2007 - edition 00
Engine

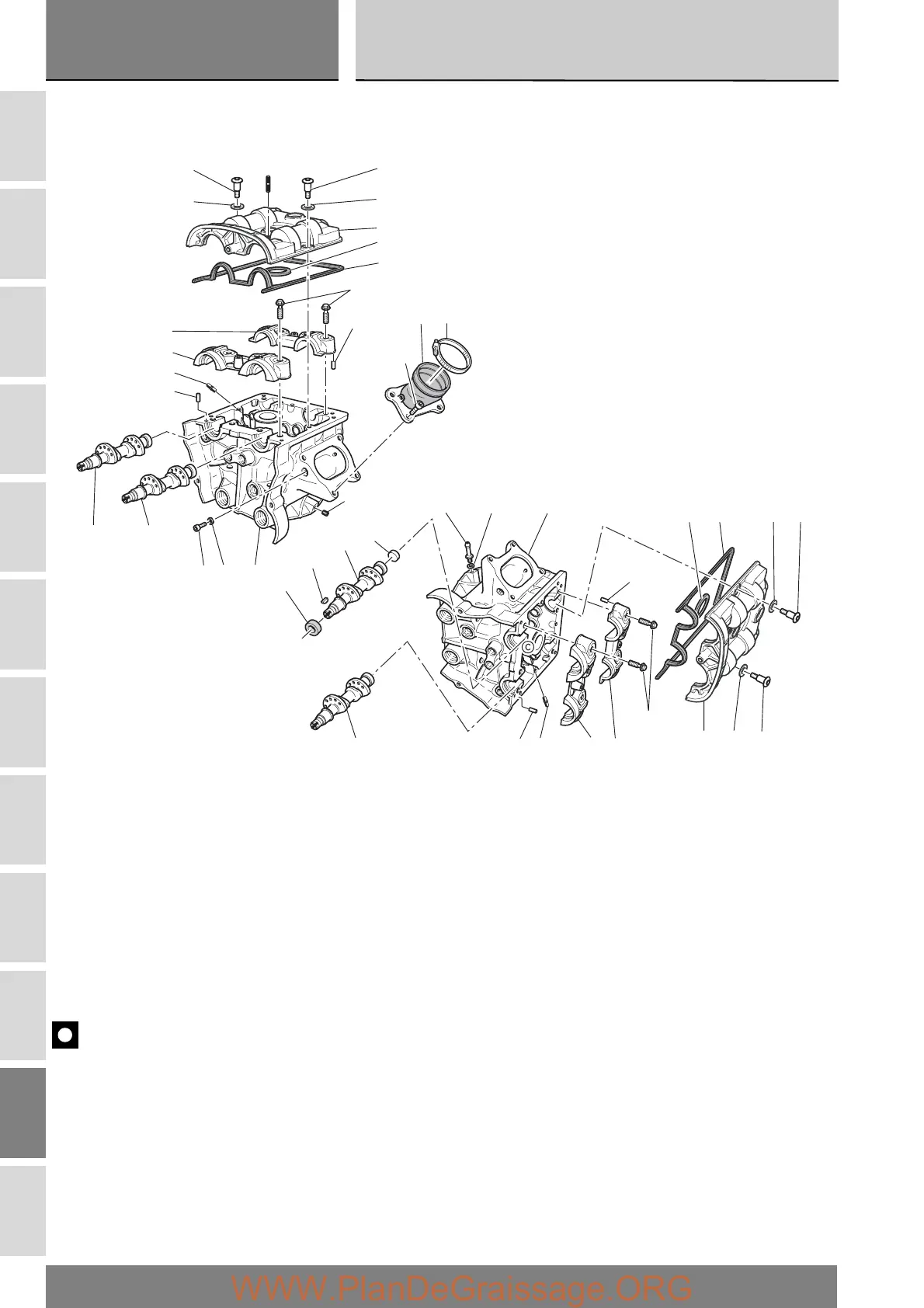

4.4 - Cylinder head assemblies: camshafts
1 Cylinder head
2 Stud bolt
3 Special screw
4Seal
5 Horizontal cylinder head rocker cover
6 Vertical cylinder head rocker cover
7 Special screw
8 Washer
9 Cylinder head gasket
10 Grub screw
11 Locating dowel
12 Union
13 Clamp
14 Horizontal cylinder exhaust camshaft
15 Horizontal cylinder intake camshaft
16 Plug
17 Oil seal
18 Vertical cylinder exhaust camshaft
19 Key
20 Vertical cylinder intake camshaft
21 Bolt
22 Timing side support
23 Opposite side support
24 Seal
25 Intake manifold
26 Bolt
27 Washer
Important
Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
3
11
23
11
2
10
78
7894
7
8
9
4
6
14
17
19
16
20
15
7
8
18
5
3
11
11 2 2 2 2 3
12
24
1
13
27 1
21
25
26
22
1
