N 6.1
122 1098/1098S - M.Y. 2007 - edition 00
Engine

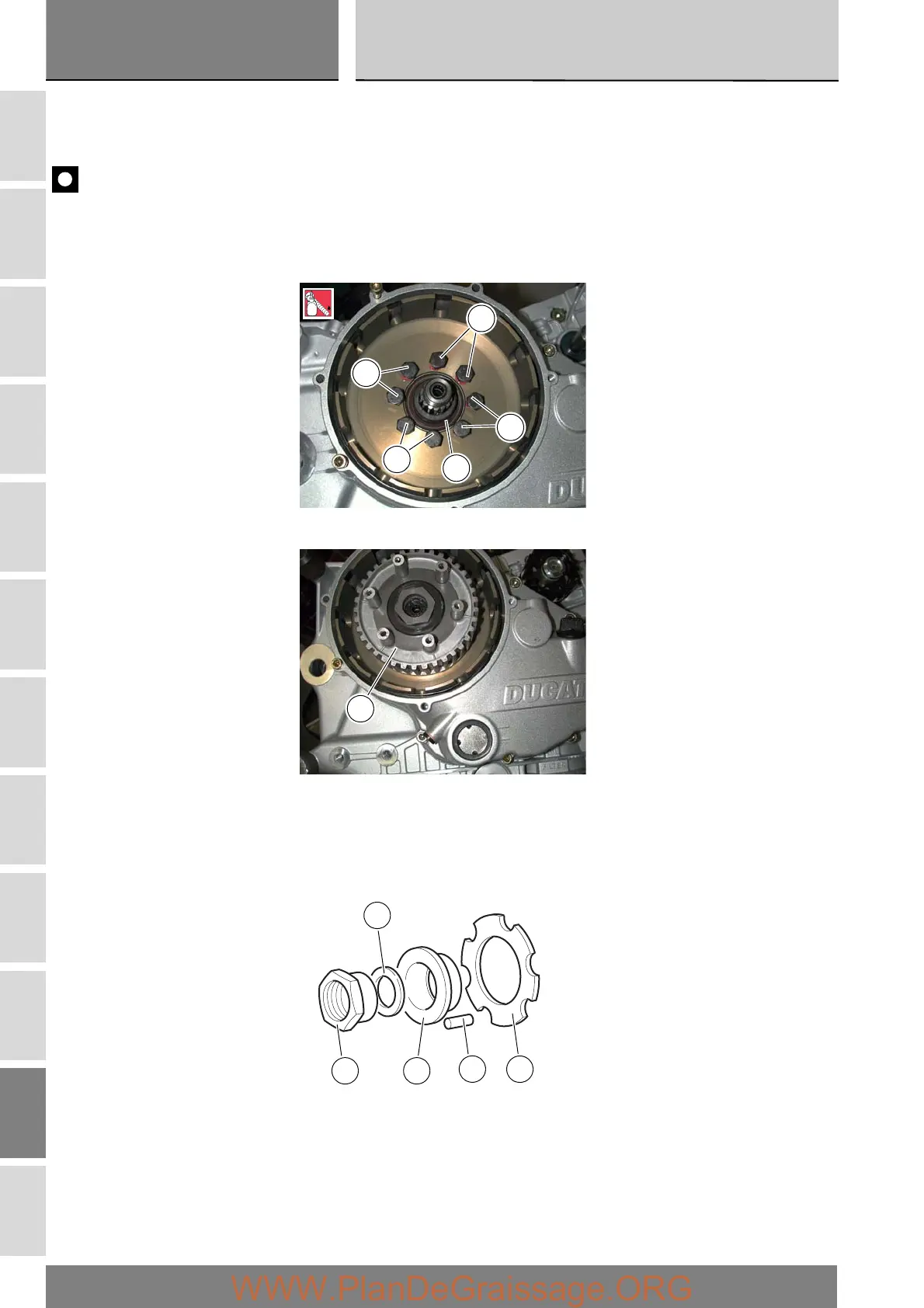

Reassembly of the clutch
Assemble the clutch drum to the primary drive gear.
Apply threadlocker to the threads of the eight retaining bolts (11) and insert them into the gear.
Important
Use new bolts.
Tighten the bolts (11) to the specified torque working in a crosswise pattern (Sect. C 3).
Fit the spacer (16) to the gearbox input shaft along with the lubricated O-ring (15). The O-ring side should face the engine.
Fit the clutch centre (10) complete with the cush drive rubbers onto the input shaft.
Fit the following parts onto the end of the input shaft:
- thrust washer (9);
- bush (20) with pin (19) in the cush drive hub;
- safety washer (5) and nut (18).
4
LOCK
11
11
11
11
16
10
20
19
18
5
9
