section
N 8
164 1098/1098S - M.Y. 2007 - edition 00
Engine

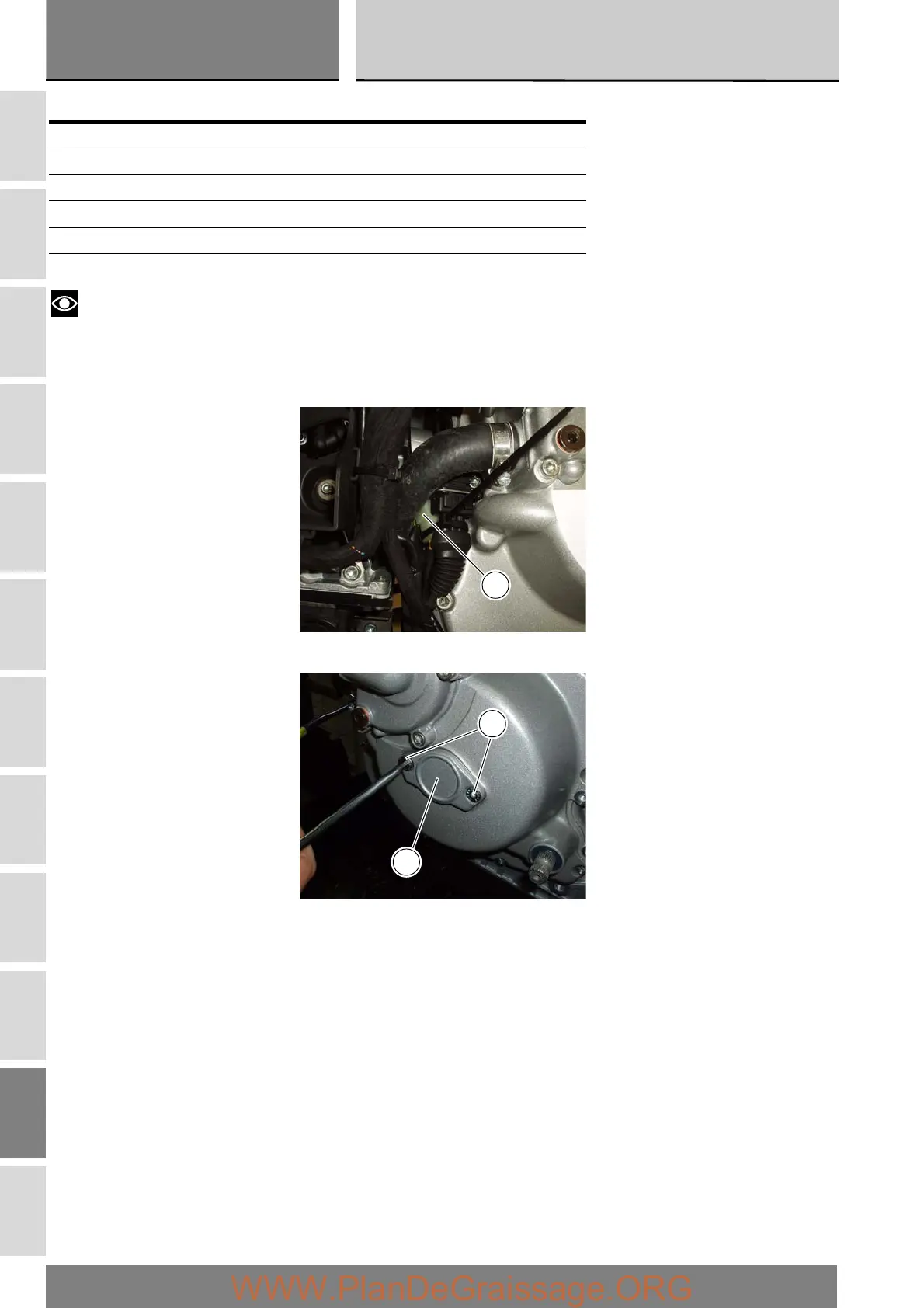

Removal of the left-hand side crankcase cover
Notes
This operation is described for an engine removed from the frame since all reassembly procedures are easier with the engine on
the bench.
Disconnect the alternator wiring connector from the main wiring loom (A).
Unscrew the two retaining bolts (7) of the centre cap (6) over the end of the crankshaft.
Operation Section reference
Remove the front sprocket cover G 7
Drain the engine oil D 4
Remove the clutch pushrod F 10
Remove the pump-cylinder hoses N 5
Remove the water pump-radiator hose N 3.3
A
6
7
