Engine

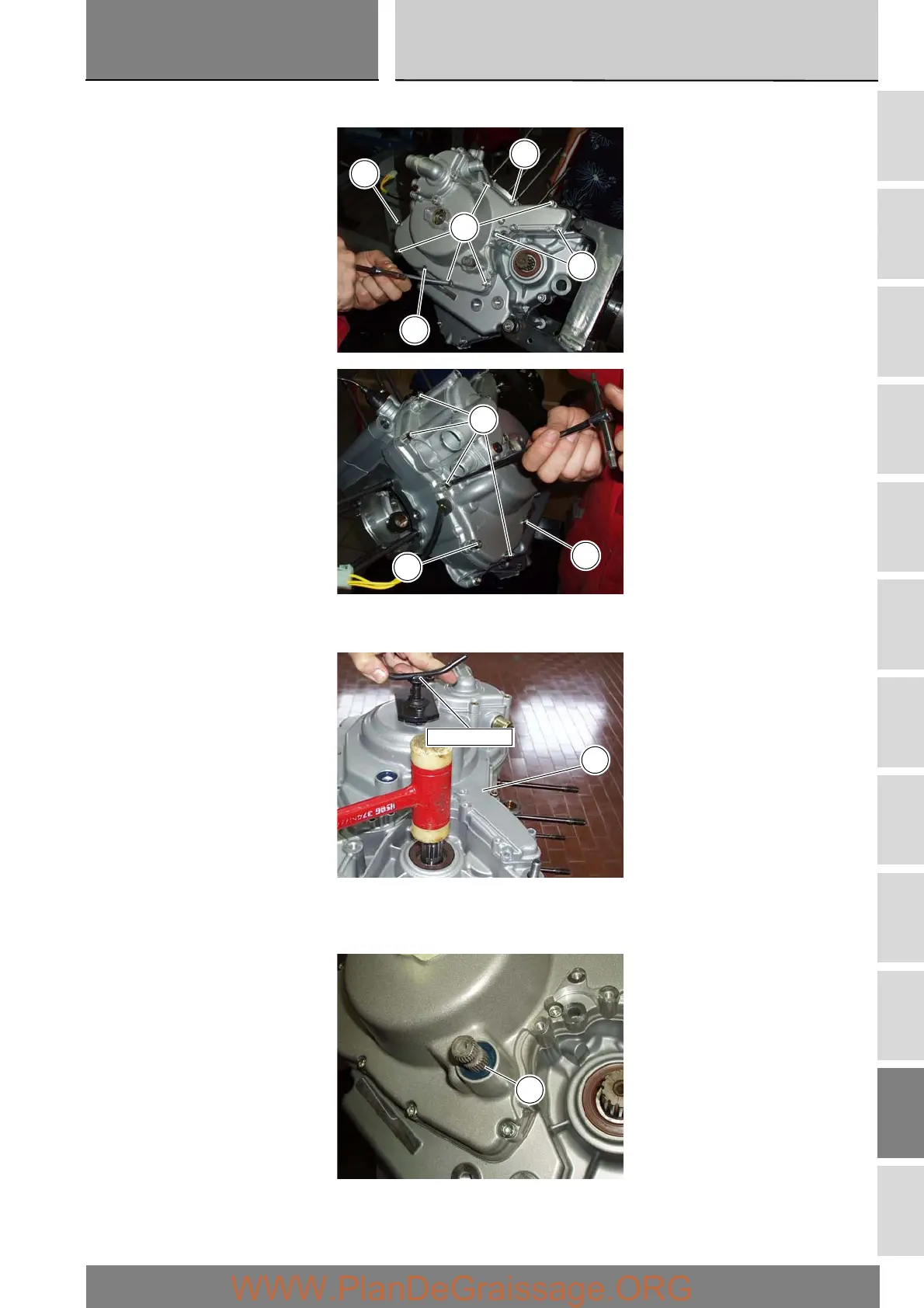

Unscrew the left-hand crankcase cover bolts (1), (11), (12) and (13).
Fix service tool 88713.1749 to the holes of the two bolts (7) you have just removed.
Turn the tool shaft slowly to remove the cover (29) from the LH crankcase half.
On the cover in correspondence with the gearchange shaft, there is an oil seal (4) that may be damaged when removing the
crankcase cover.
Always check the condition of this oil seal and renew it if damaged.
11
12
1
13
13
13
1
11
88713.1749
29
4
