section
G 7
52 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes
7 - Rear suspension
1Bolt
2 Washer
3Nut
4Bolt
5 Spacer
6 Oil seal
7 Roller bearing
8 Rocker arm assembly
9Bolt
10 Shock absorber
11 Collar
12 Nut
13 Ball joint
14 Tie-rod
15 Nut
16 Ball joint
17 Bolt
18 Bolt
19 Tie-rod central shaft
Important

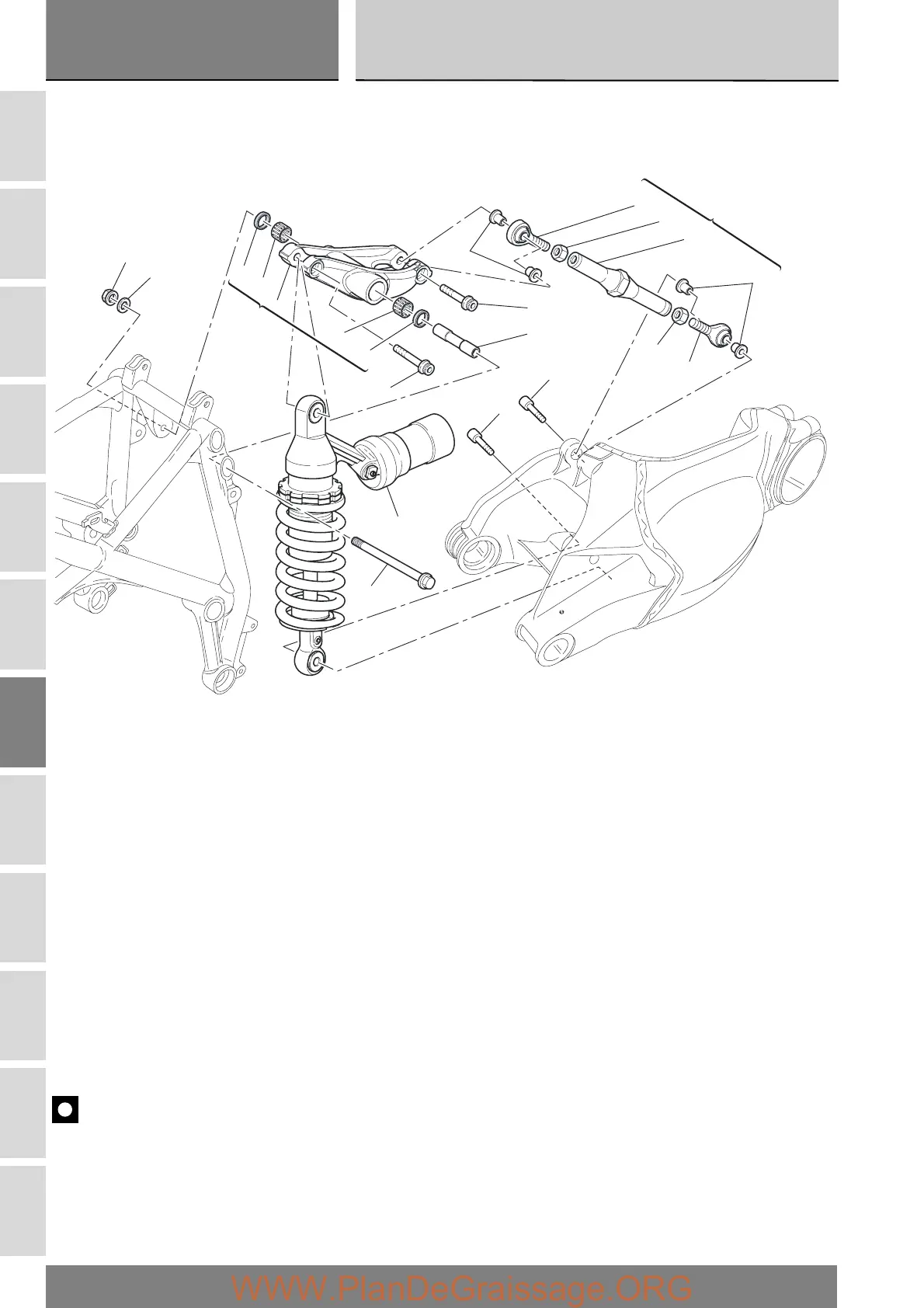

Bold reference numbers in this section identify parts not shown in the figures alongside the text. Refer to the exploded view
diagram.
8
6
7
7
6
3
2
10
1
17
5
9
4
15
13
11
12
19
11
16
18
14
1
