Ducati 1098 2007 - 1 - Front wheel

A
B
C
D
E
F
G
H
L
M
N
P
section
G 1
31098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes
1 - Front wheel
1Nut
2Washer
3 Left spacer
4 Oil seal
5 Bearing
6 Front wheel rim
7 Inner spacer
8Bolt
9 Right spacer
10 Front wheel axle
11 Valve

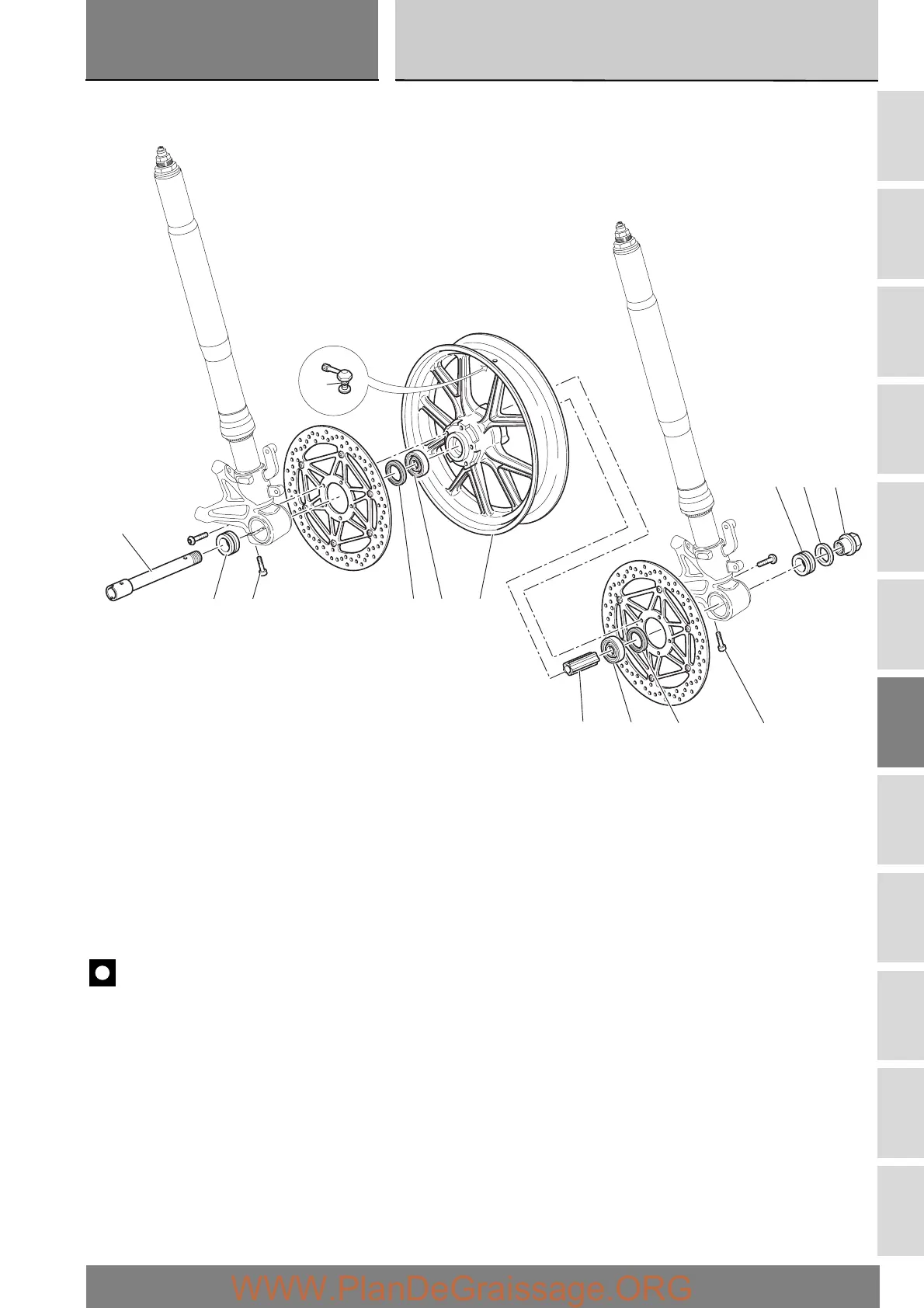

Important
Bold reference numbers in this section identify parts not shown in the figures next to the text. Refer to the exploded view
diagram.
3 2 1
8457
65489
10
11
1
