Controls - Devices

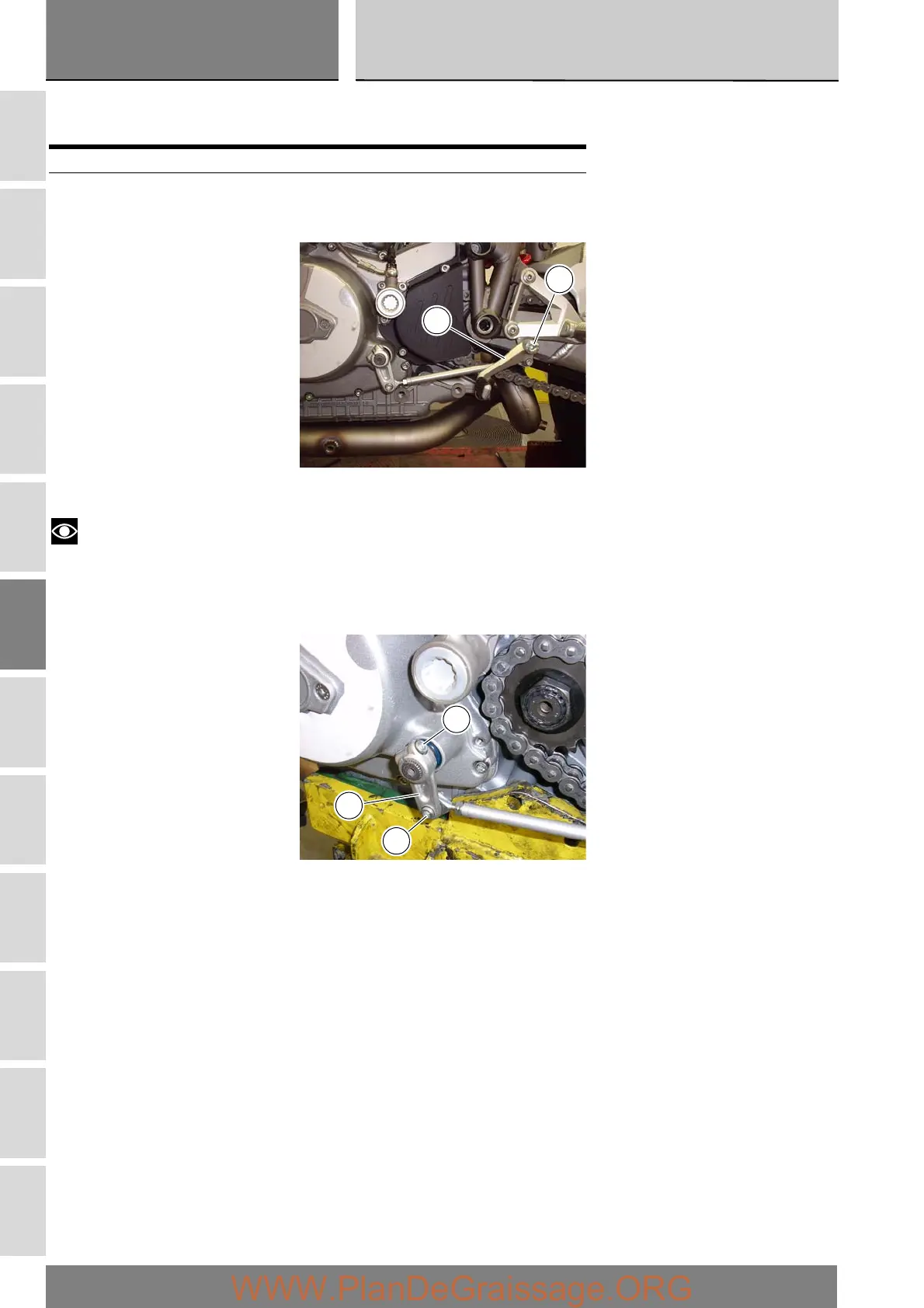

Removal of the complete gearchange control
Unscrew and remove the pivot bolt (5) securing the gear pedal (1) and recover the O-ring seals (6).
Unscrew and remove the bolt (13) securing the lever to the gearbox shaft.
Withdraw the lever (14) complete with the gearchange control assembly.
Notes
Mark the position of lever (14) relative to the gear selector shaft.
To remove the lever (14) from the gearchange assembly, unscrew the bolt (17), recover the nut (15), and then slide off the
lever (14).
Operation Section reference
Remove the left-hand fairing E 2
1
5
13
14
17
