Use and maintenance
Adjusting the rear shock absorber

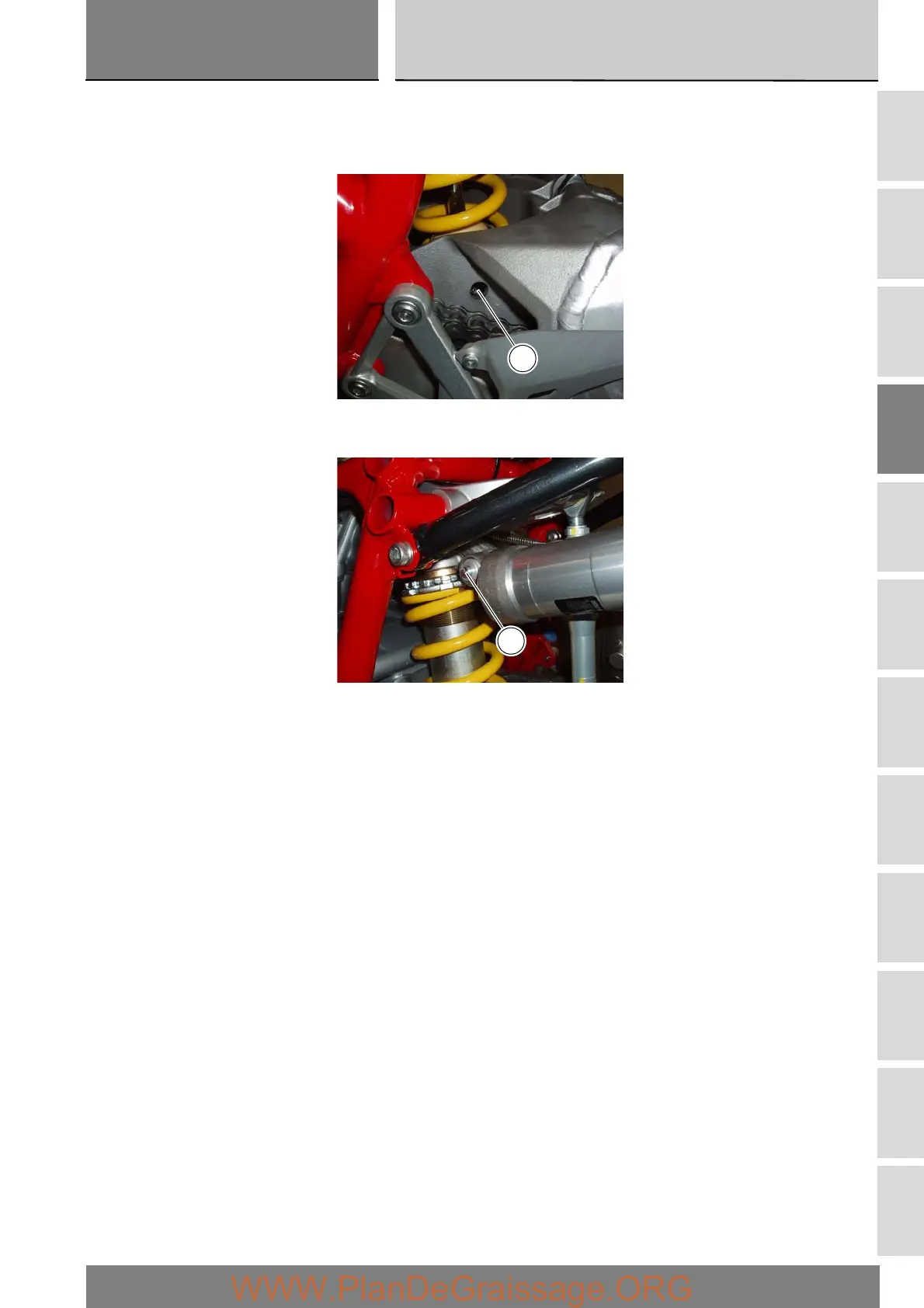

The shock absorber has external adjusters that enable you to adapt the rear suspension to suit the load conditions. Adjuster (1),
located on the left-hand side at the point at which the shock absorber is fixed to the swingarm, controls rebound damping.
The adjuster (2) located on the rear shock absorber reservoir is used to adjust compression damping. Turn the adjusters (1 and 2)
clockwise to increase damping, or counter clockwise to reduce damping.
STANDARD setting:
(1098)
from the fully closed position (turned fully clockwise), unscrew:
rebound adjuster (1): 2 turns;
Compression adjuster (2): 2 turns;
Spring preload: 28 mm.
(1098S)
from the fully closed position (turned fully clockwise), unscrew:
rebound adjuster (1): 10 clicks;
Compression adjuster (2): 10 clicks;
Spring preload: 23 mm.
