section
M 3
18 1098/1098S - M.Y. 2007 - edition 00
Injection - ignition system

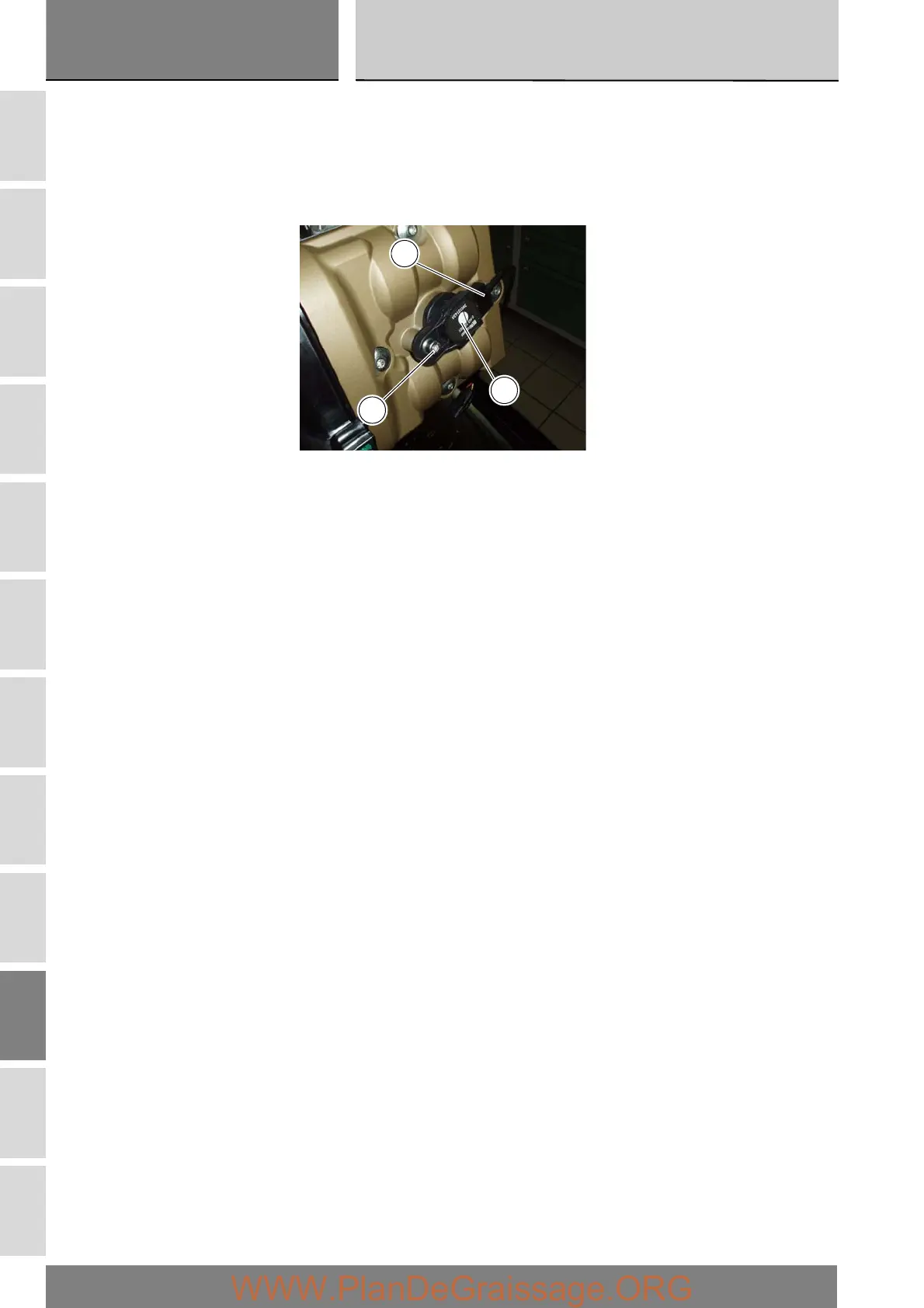

Ignition coils
Remove the seat cowling and the fuel tank (Sect. E 3).
Undo the nut (1) securing the coil to the cylinder head.
Remove the connector (2) and extract the coils (3) from the spark plugs on both cylinder heads.
Clean the area around the spark plug bores with a compressed air jet before removing the spark plugs themselves.
Remove the spark plugs, making sure that dirt does not fall into the combustion chambers.
2
1
3
