G 8
651098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

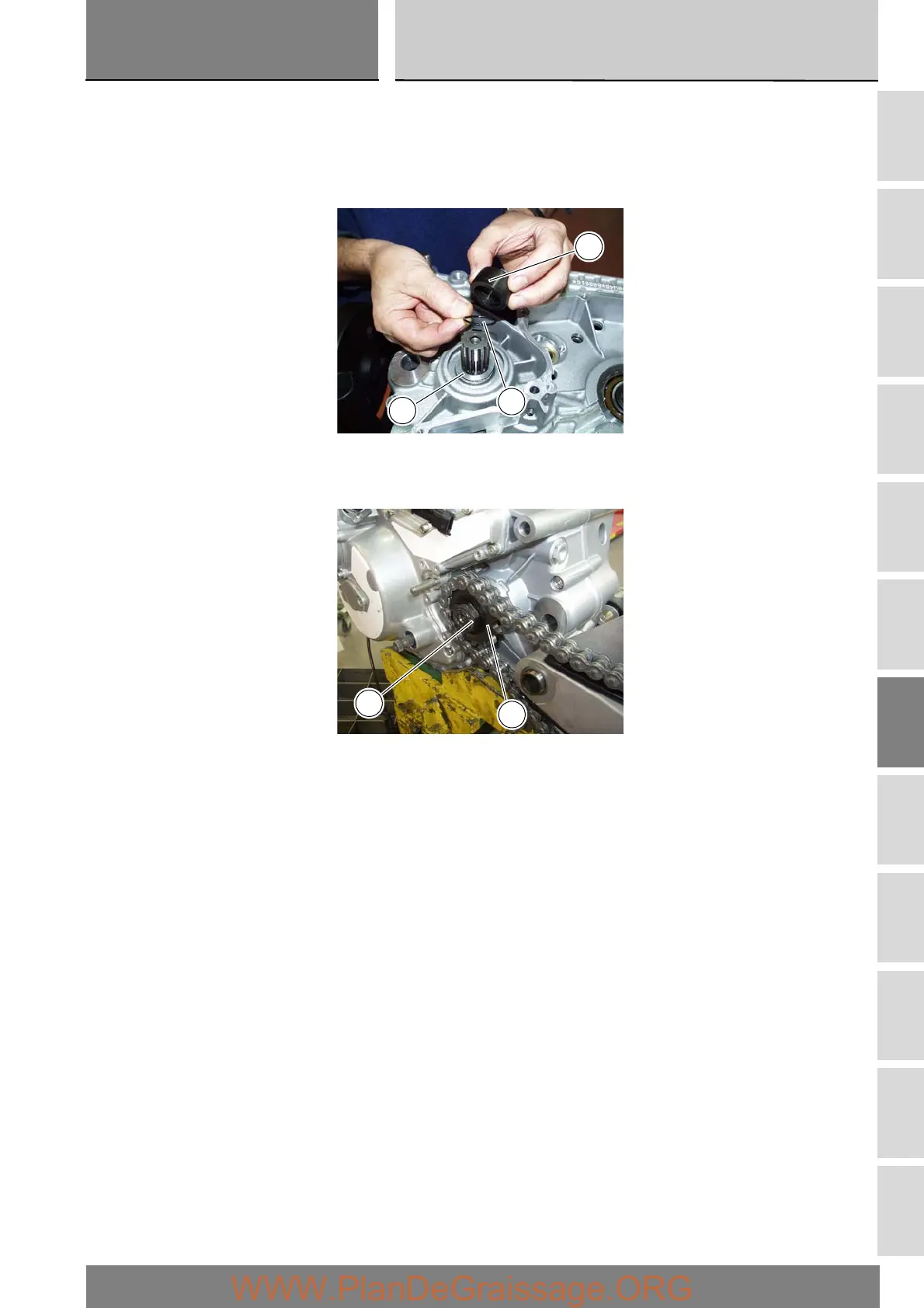

Refitting the front sprocket
Refit the ring (17) (Sect. N 9.2).
Grease the O-ring (16) and install it on the front sprocket spacer (15).
Fit the spacer, from the seal side, on the output shaft and seat it against the inner ring of the bearing.
Before fitting the front sprocket, check that the spacer (15) is installed on the gearbox output shaft.
Check that the splines of the gearbox output shaft and the sprocket are in perfect condition.
Fit the front sprocket (3) and install the safety washer (2).
Tighten the nut (1) to the specified torque (Sect. C 3).
16
15
17
1
3
