64 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

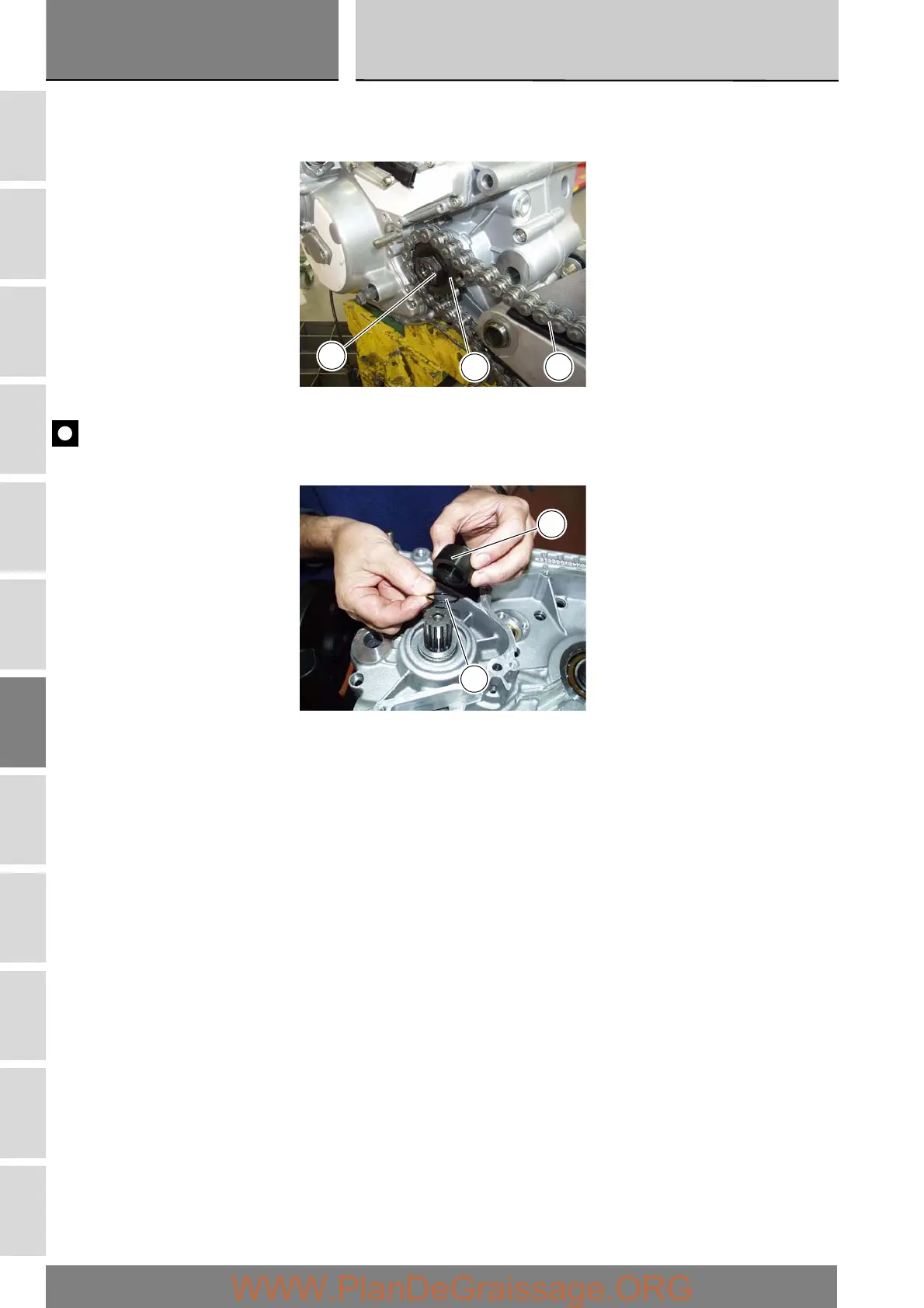

Engage a low gear and unscrew the nut (1).
Remove the nut (1) and the safety washer (2).
Remove the front sprocket (3) with the chain (4) from the gearbox output shaft.
Remove the spacer (15) with the O-ring (16) from the gearbox output shaft.
Important
The O-ring (15) must be renewed on reasembly.
