Fairings

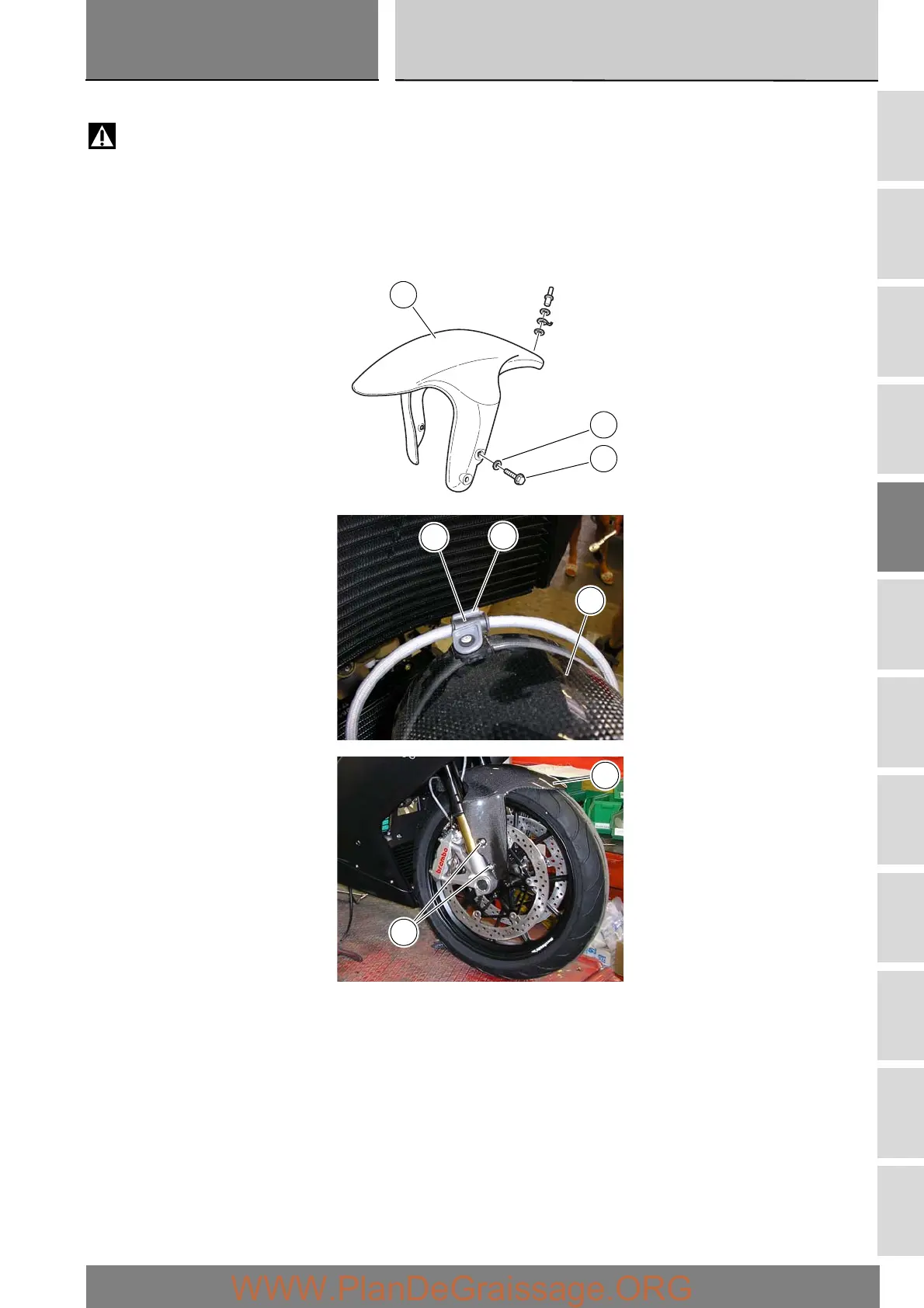

Refitting the front mudguard
Warning
Do not ride the motorcycle without the front mudguard. The front mudguard also acts as a brake hose support and prevents the
brake hose from fouling the wheel when braking.
Position the front mudguard (4) and refit the retaining bolts (2) with the washers (3).
Locate the front brake hose grommet (A) in the mudguard clip (1).
Tighten the bolts (2) to the specified torque (Sect. C 3).
3
2
4
1
A
4
4
2
