Removal of the front sprocket

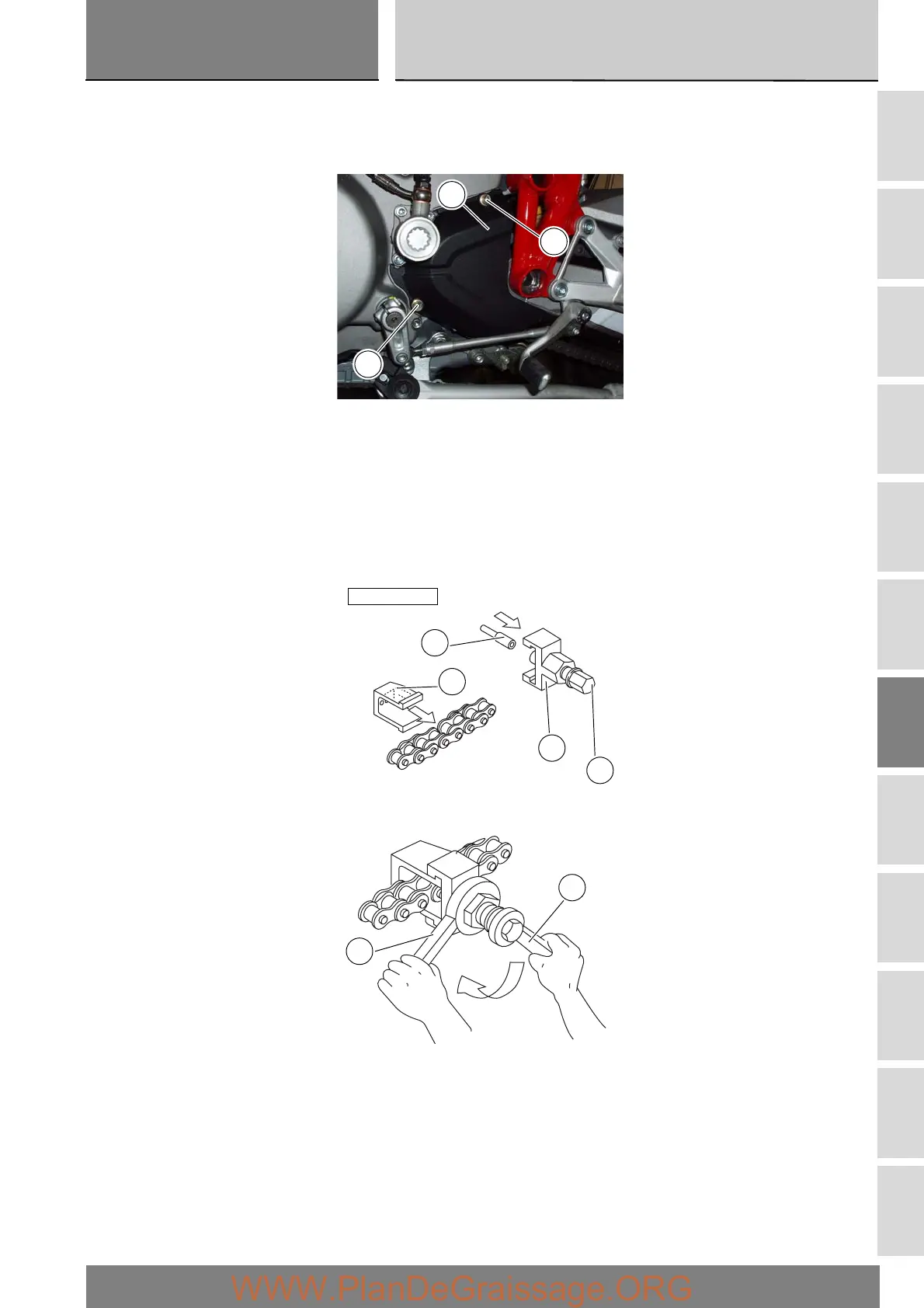

Undo the bolts (5) and remove the sprocket cover (6).
Slacken the chain (Sect. D 4).
Remove the chain with the service tool part no. 88713.1344.
The tool is composed of a holder (A), punch (B), body (C) and two wrenches (D) and (E).
Fit the link to be opened into the holder (A).
Fit a punch (B) into the body (C) and manually unscrew the bolt until the punch no longer protrudes.
Fit the holder (A) and link into the body (C).
Manually turn the bolt (F) on body (C) so that the punch (B) locates against the pin, taking care that they are aligned with each
other.
Fit hex wrench (D) into the hexagonal part of the body (C) and wrench (E) onto the bolt.
Turn the bolt (F) clockwise to push out the pin.
Remove the chain.
5
6
5
B
F
A
C
88713.1344
D
E
