Use and maintenance
Adjusting the position of the gearchange and rear brake pedals
The position of the gearchange and rear brake pedals in relation to the footrests can be adjusted to suit the preferred riding
position.

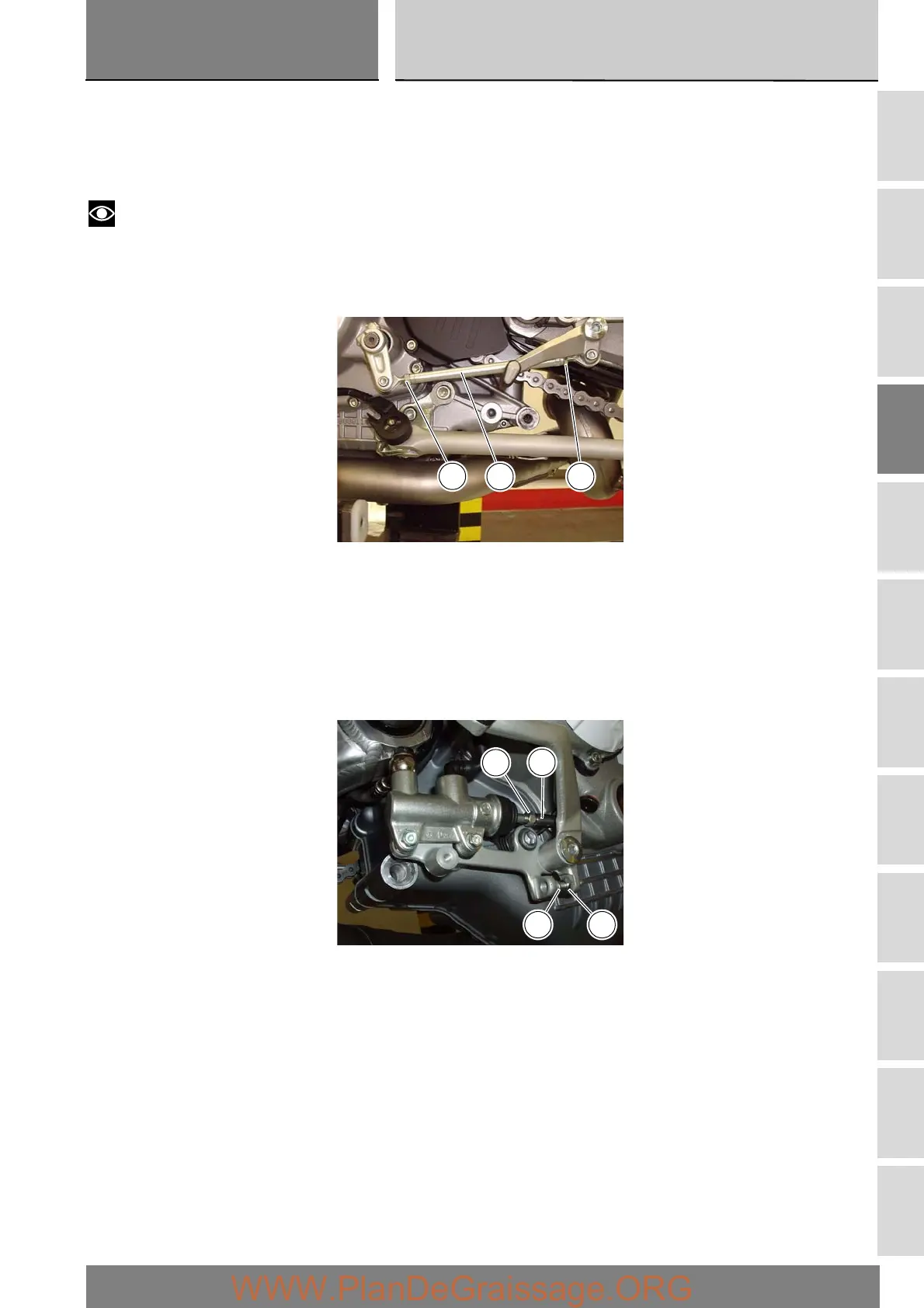

To adjust the position of the gearchange pedal, proceed as follows:
Restrain the tie-rod (1) and slacken the locknuts (2) and (3).
Notes
The locknut (2) has a left-hand thread.
Rotate the tie-rod (1) using an open-ended wrench on the flats (A) to move the gearchange pedal to the required position.
Tighten the two lock nuts onto the tie-rod.
To adjust the position of the rear brake pedal, proceed as follows.
Loosen the locknut (4).
Turn the pedal travel adjustment bolt (5) until the pedal is in the desired position.
Tighten the lock nut (4) to the specified torque (Sect. C 3).
Operate the pedal by hand to make sure it has 1.5 to 2 mm of free play before the brake begins to bite.
If not, adjust the length of brake master cylinder pushrod as follows:
Slacken off the locknut (7) on the pushrod.
Screw the rod into the clevis (6) to increase play, or unscrew it to reduce play.
Tighten the lock nut (7) to the specified torque (Sect. C 3) and re-check the free play.
2
1 3
6
7
45
