E 3
18 1098/1098S - M.Y. 2007 - edition 00
Fairings

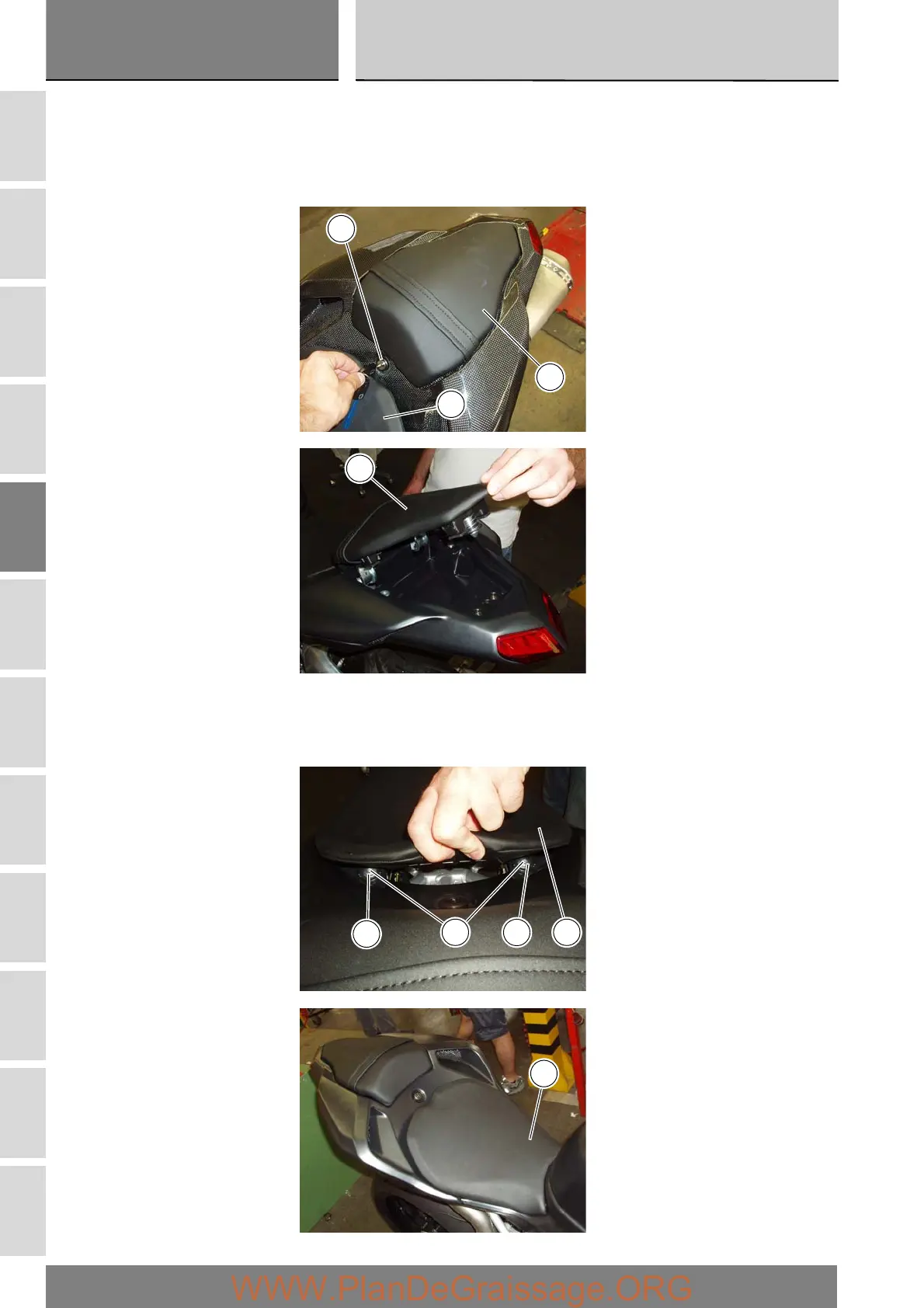

Removal of the seat
Removal of the pillion seat
Release the pillion seat (4) by opening the lock (A) at the rear of the rider seat (1).
Remove the pillion seat (4) from the bike by pulling it backwards slightly and lifting.
Removal of the rider seat
Undo the bolts (2) securing the seat to the subframe and recover the washers (3).
Remove the rider seat (1) from the bike by pulling it backwards slightly and lifting.
A
1
4
4
12
3
3
1
