Fairings
Removal of the front shield

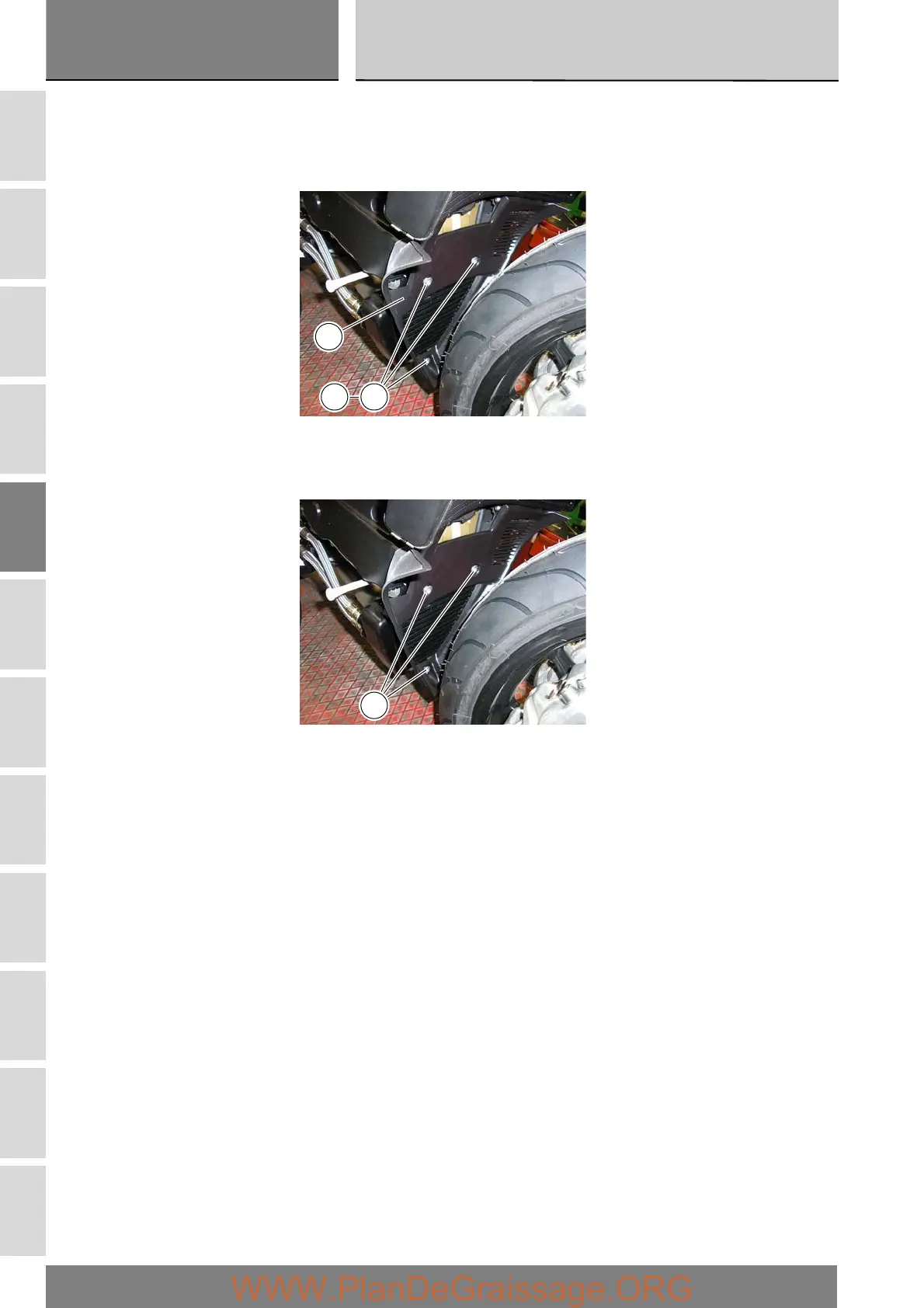

After removing the side fairings as described above, unscrew the screws (22) securing the front shield (16) to the oil cooler
support bracket.
Remove the front shield (16) from its seat and recover the washers (21).
Refitting the front shield
When refitting the shield, tighten the screws (22) to the specified torque (Sect. C 3).
21 22
16
22
