section
E 2
131098/1098S - M.Y. 2007 - edition 00
Fairings

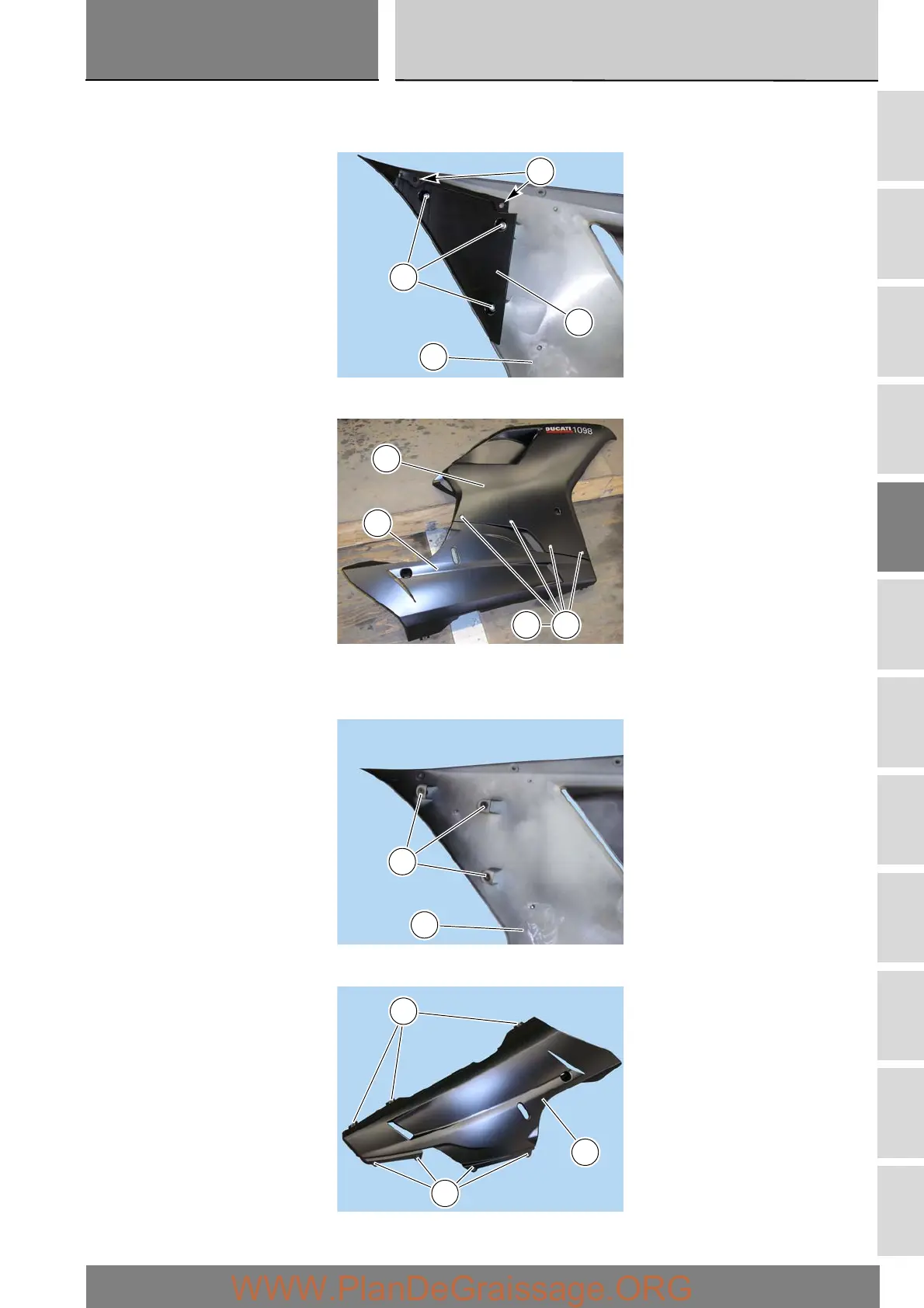

Disassembly of the fairing
Remove the screws (19) securing the panel (3) and remove it from the upper fairing (11).
Undo the screws (19) securing the upper fairing (11) to the lower (9), recovering the washers (18).
Repeat the above steps to disassemble the left-hand side fairing.
To reassemble the fairing panels, carry out the steps of the disassembly procedure in reverse order, making sure that the inserts
(5) are fitted to the upper fairing (11) and the panel (3).
Make sure that the inserts (5) and clips (13) are fitted to the lower fairing (9).
Tighten all the screws to the specified torque (Sect. C 3).
11
19
3
5
18 19
11
9
11
5
5
13
9
