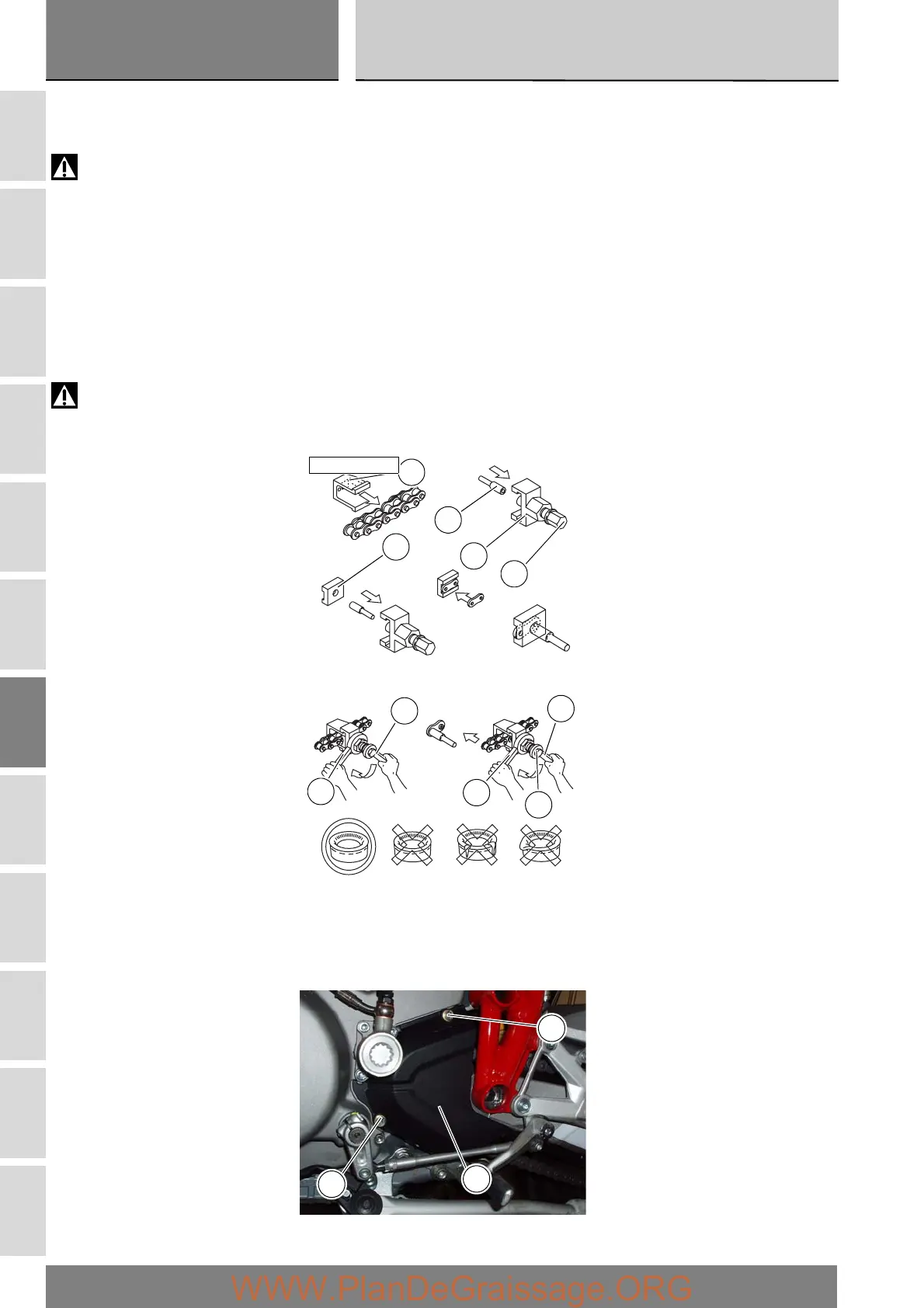

Fit the chain and join it with the service tool part no. 88713.1344, previously used for split it.
The tool is composed of a holder (A), punch (B), body (C) and two wrenches (D) and (E) and link plate holder (F). Connect the two
halves of the chain with the external link and manually fit the plate onto the pins.
Warning
Lubricate the pins abundantly; try to avoid touching them with your hands.
Fit the holder (A) onto the external link.
Fit the punch (B) into the body (C) and the plate holder (F).
Fit the body (C) onto the holder (A) which holds the chain in position.
Manually turn the bolt (G) until the plate holder (F) is seated against the plate itself.
Use wrenches (D) and (E) to turn the bolt (G) clockwise until the chain pin is in contact with the holder (F).
Remove the holder (A) from the tool.
Manually turn the bolt (G) until the punch (B) locates against the pin, taking care that they are aligned with each other.
Use wrenches (D) and (E) to turn the bolt clockwise until the punch (B) is seated against the chain plate.
To complete reassembly, repeat the entire procedure with the second pin.
Warning
Carefully check the two pins: the figure shows the correct result of the procedure.
Adjust the chain tension (Sect. D 4).
Fit the sprocket cover (6) and tighten the bolts (5) to the specified torque (Sect. C 3).
