section
N 7.1
1411098/1098S - M.Y. 2007 - edition 00
Engine

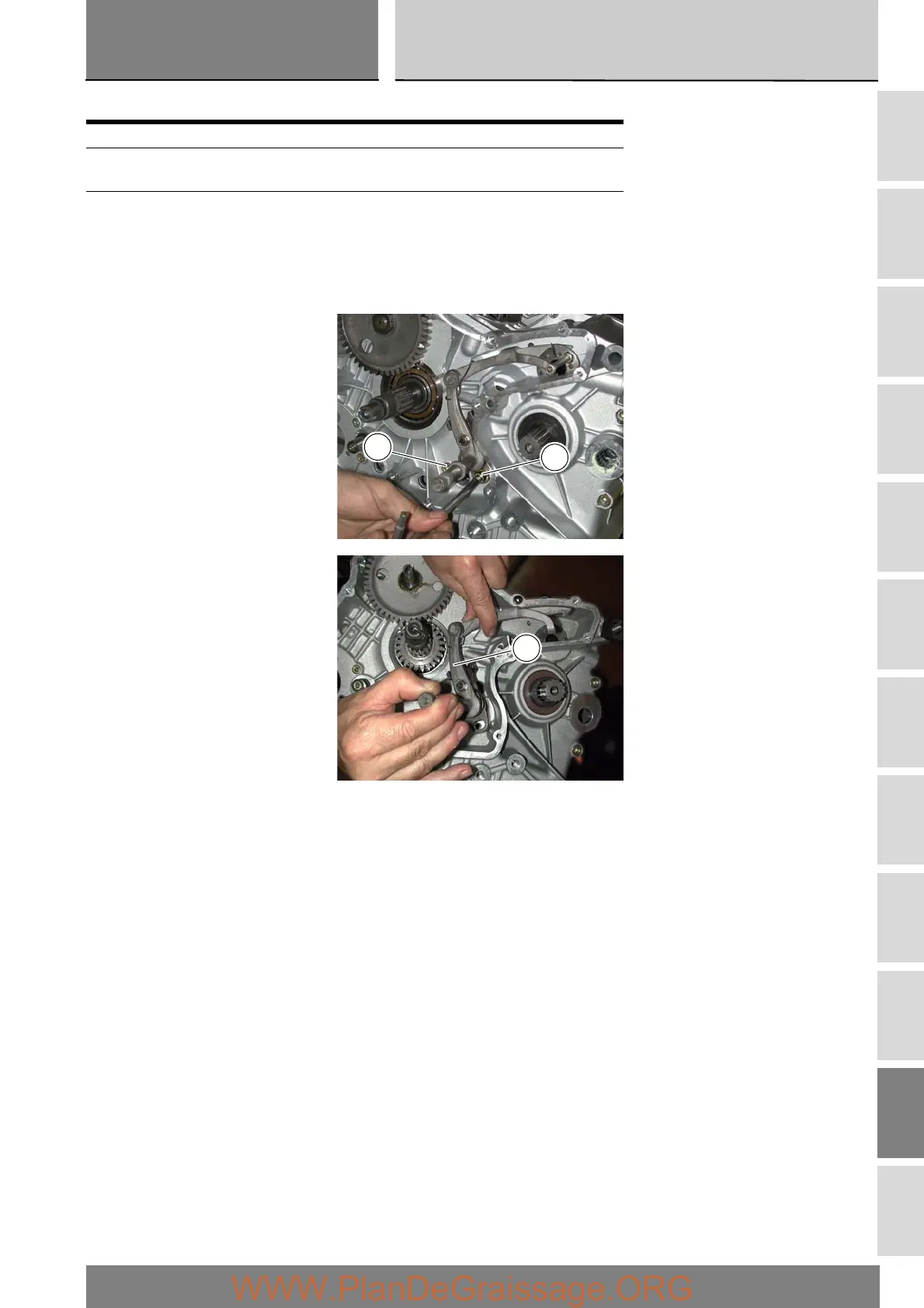

Removal of the gearchange mechanism
Undo and remove the bolts (18) and (20) securing the gearchange mechanism (25).
Remove the gearchange mechanism complete with the shaft, spring, and stop plate.
Operation Section reference
Remove the alternator cover and flywheel/
alternator assembly
N8
Remove the right-hand crankcase cover
complete with clutch drum and primary
drive gear
N6.2
20
18
25
