section
N 7.1
142 1098/1098S - M.Y. 2007 - edition 00
Engine
Important

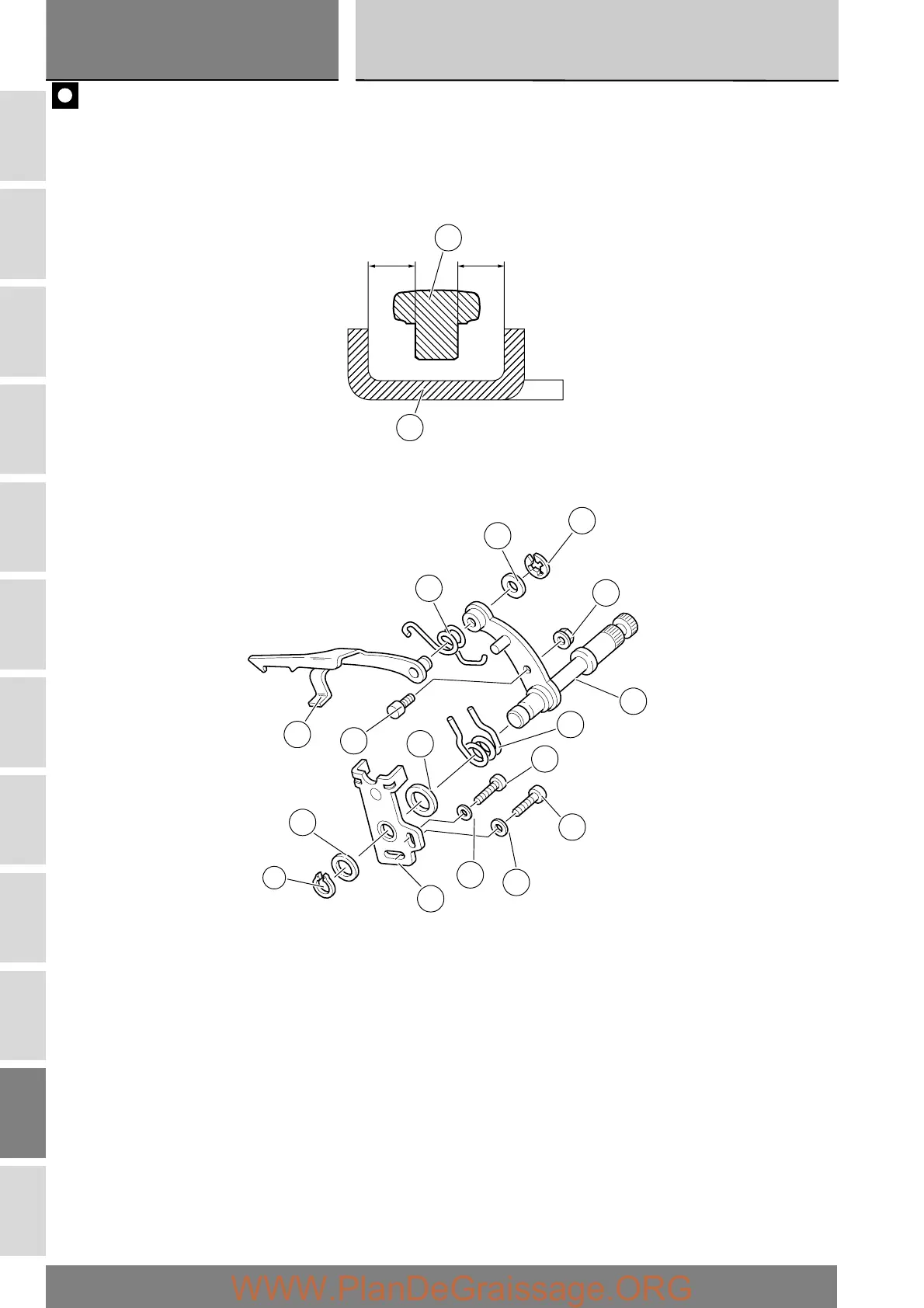

Visually inspect the gear selector claw (14) for wear, particularly around the area where it contacts the selector drum.
If it is necessary to renew any components, disassemble the gearchange mechanism as shown in the exploded view.
Reassemble the gearchange mechanism, orienting the eccentric pin (15) in such a way that the lever arm (16) is positioned
centrally with respect to the shoulders of the stop plate (23).
Now tighten the nut (13) to the specified torque (Sect. C 3).
==
16
23
13
12
11
10
14
15
24
23
19
21
20
18
22
9
16
17
