371098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes
Removal of the rear eccentric hub

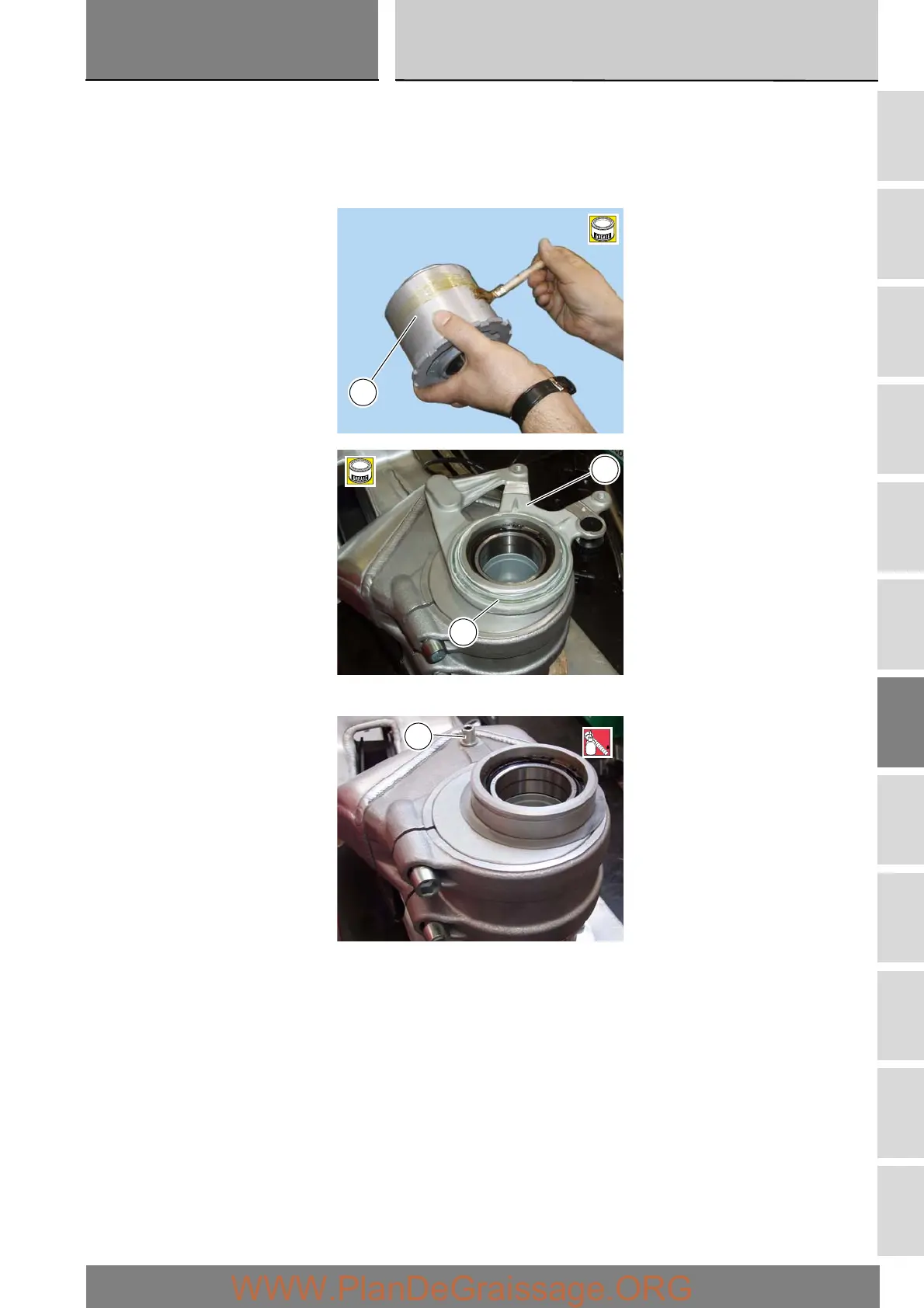

Refitting is the reverse of removal, with attention to the following points.
Before refitting, apply the recommended grease to the seat on the eccentric hub (17) of the caliper mounting bracket (16) on
which the rings (15), also greased, will be located.
If the caliper bracket locating pin (2) was removed, apply the recommended threadlocker on reassembly.
17
A
16
15
A
2
8
LOCK
