G 5
38 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

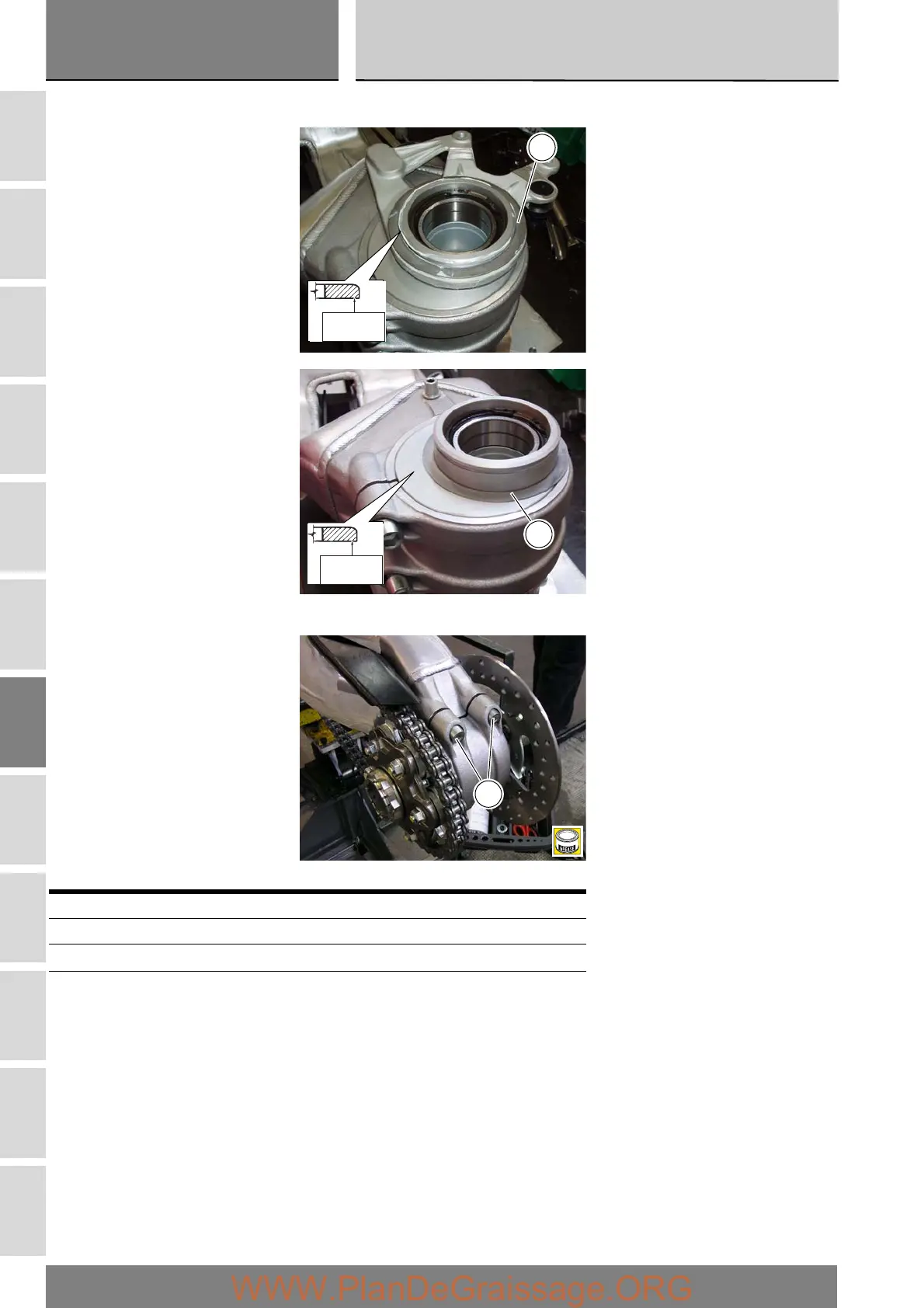

Refit the washers (14) with their square edges facing the eccentric hub.
Apply the recommended grease to the bolts (3) and tighten to the specified torque (Sect. C 3) in the sequence 1-2-1.
Tension the drive chain as indicated in the paragraph “Adjusting the chain tension” in Sect. D 4.
Operation Section reference
Refit the rear brake caliper G 6
Refit the rear sprocket G 8
Refit the rear wheel G 4
14
Square
edge
14
Square
edge
A
3
