16 1098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

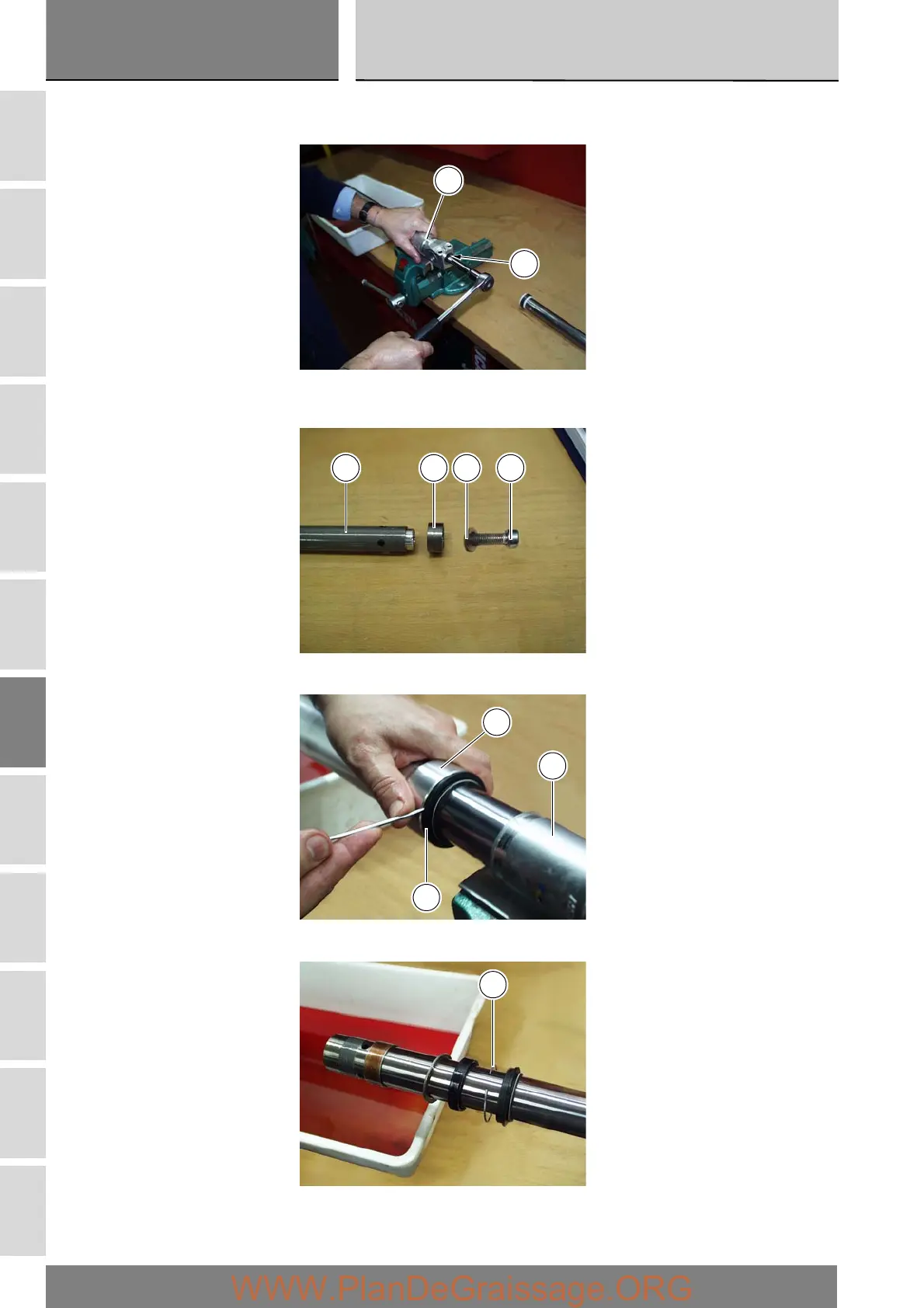

Clamp the inner tube (28) in a vice with soft-faced jaws.
Unscrew the screw (18).
Remove the adjuster screw (18) and recover the seal (16).
Remove the complete damper assembly (8) and locating ring (7).
Slide the dust seal (22) off the outer tube (26), prising it off with a screwdriver.
Remove the circlip (29).
18
28
78 16 18
21
26
22
29
