G 2
151098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

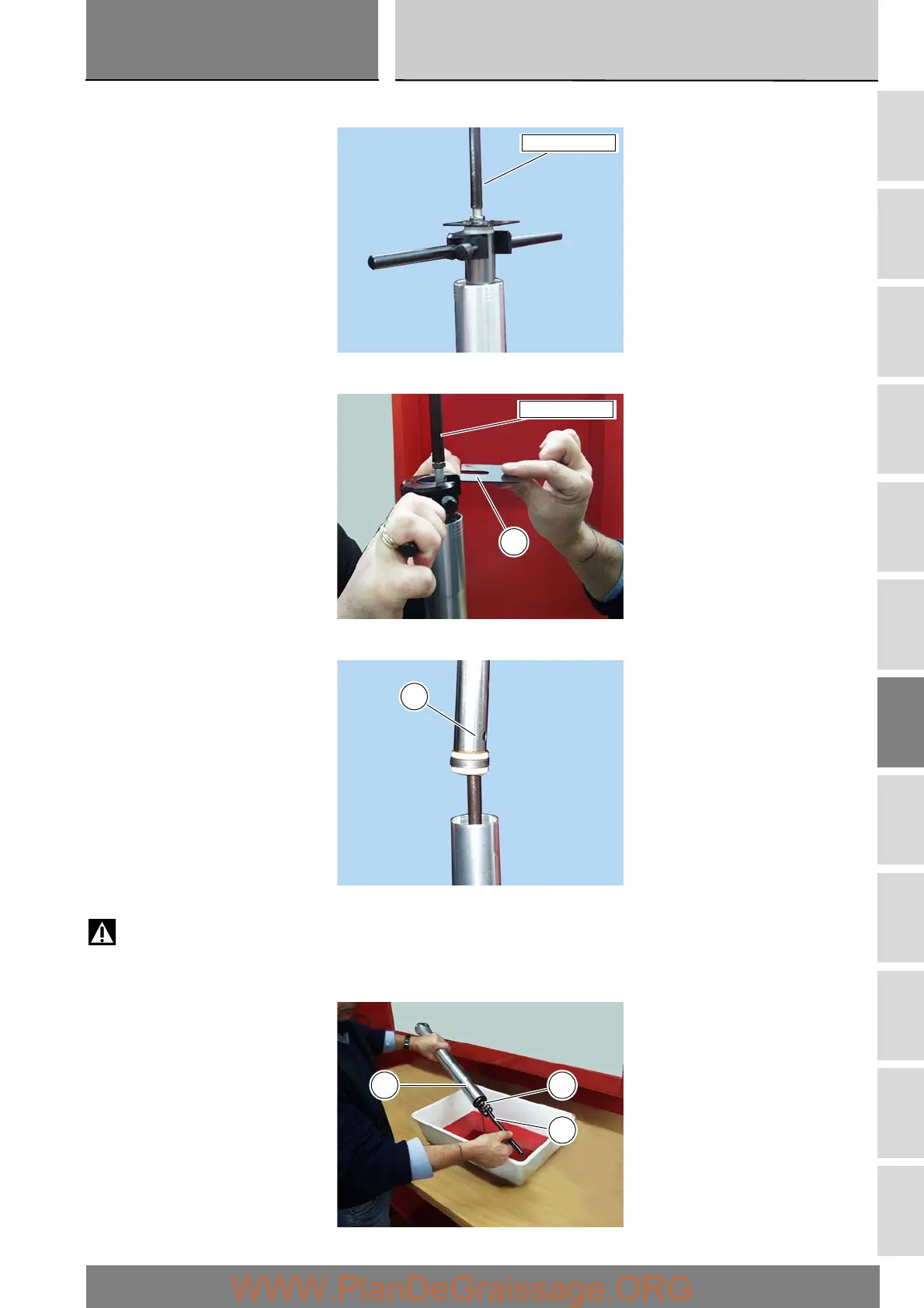

Fit the service tool part no. 88713.0958 and screw it onto the damper rod.
Push downwards to overcome the force of the spring and remove the spacer (D).
Remove the service tool part no. 88713.0957 and slide out the upper spacer (11).
Remove the spring (10) and pump the outer tube (26) and the damper (8) to expel the oil from the fork.
Warning
This movement generates pressure so that the oil will be rapidly expelled from the fork.
Aim the jet of oil into a suitable container and avoid contact with fork oil.
88713.0958
88713.0958
D
11
26 10
8
