G 2
211098/1098S - M.Y. 2007 - edition 00
Wheels - Suspensions - Brakes

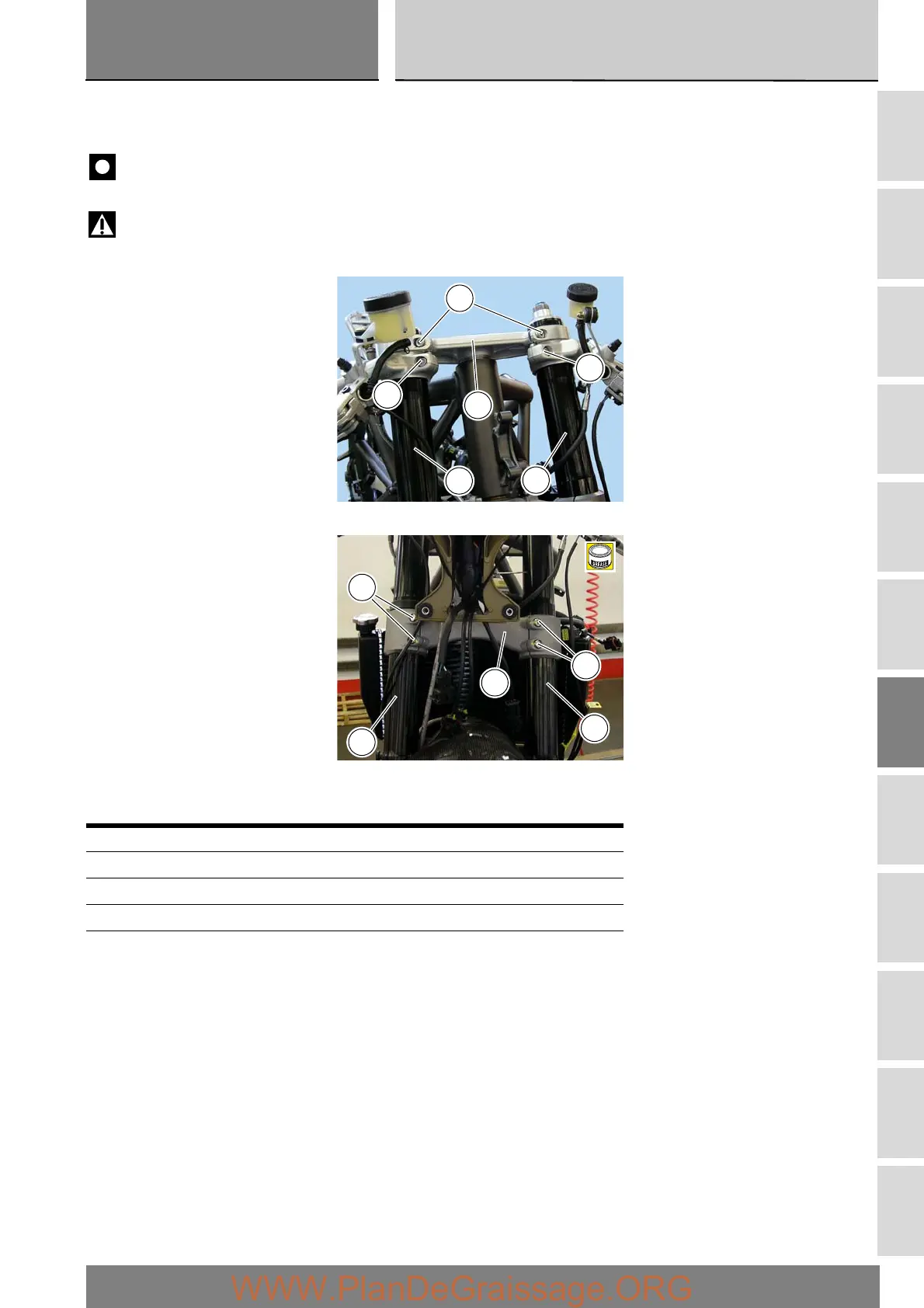

Tighten to the specified torque (Sect. C 3) the clamp bolts (2) and (1) securing the legs to the bottom yoke (4) and to the top
yoke (3) in the sequence 1-2-1.
Tighten the handlebar clamp bolts (30) to the specified torque (Sect. C 3).
Important
If the clamp bolts (1) and (2) were removed on disassembly, smear the threads with the specified grease before tightening.
Warning
Do not use the motorcycle without the front mudguard fitted to avoid the risk of the brake pipes fouling the wheel on braking.
Refit any parts removed from the frame:
Operation Section reference
Refitting the headlight shell E 1
Refitting the front wheel G 1
Refitting the front mudguard E 4
Refitting the front brake calipers G 3
