section
N 9.2
2131098/1098S - M.Y. 2007 - edition 00
Engine
Notes

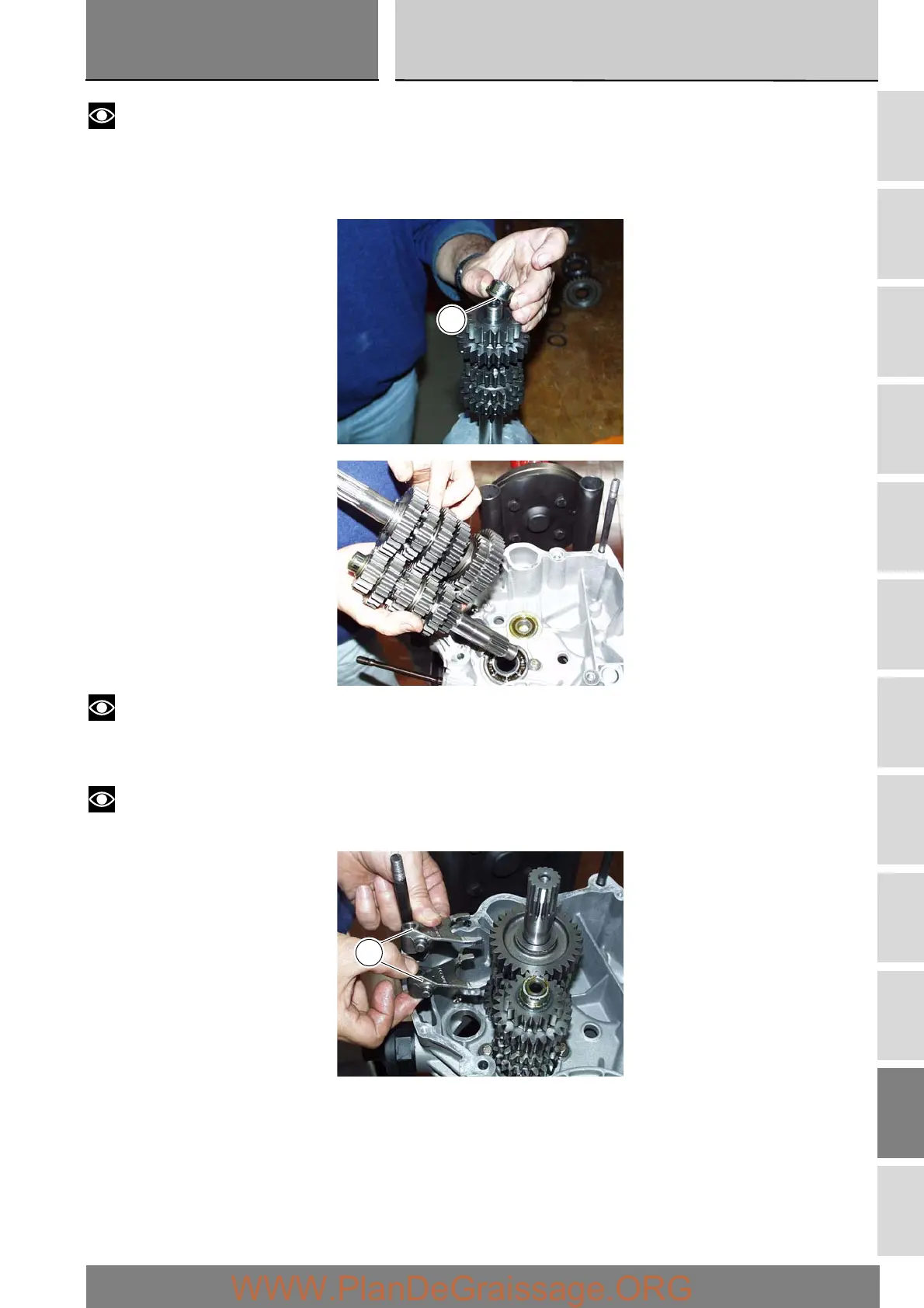

When refitting used components, make sure that the inner races (C) of the gearbox shaft bearings are fitted into the correct
bearings and have not been left on the shafts.
Mesh the gearbox shafts and install them on the right-hand crankcase half with the calculated shims.
Notes
A figure and a list of the component parts of the gearbox appear in Sect. N 7.2.
Install the selector forks of the 1
st
- 4
th
and 2
nd
- 3
rd
gears (D) in their respective grooves in the output shaft driven gears.
Notes
The two selector forks are identical.
C
D
