Engine

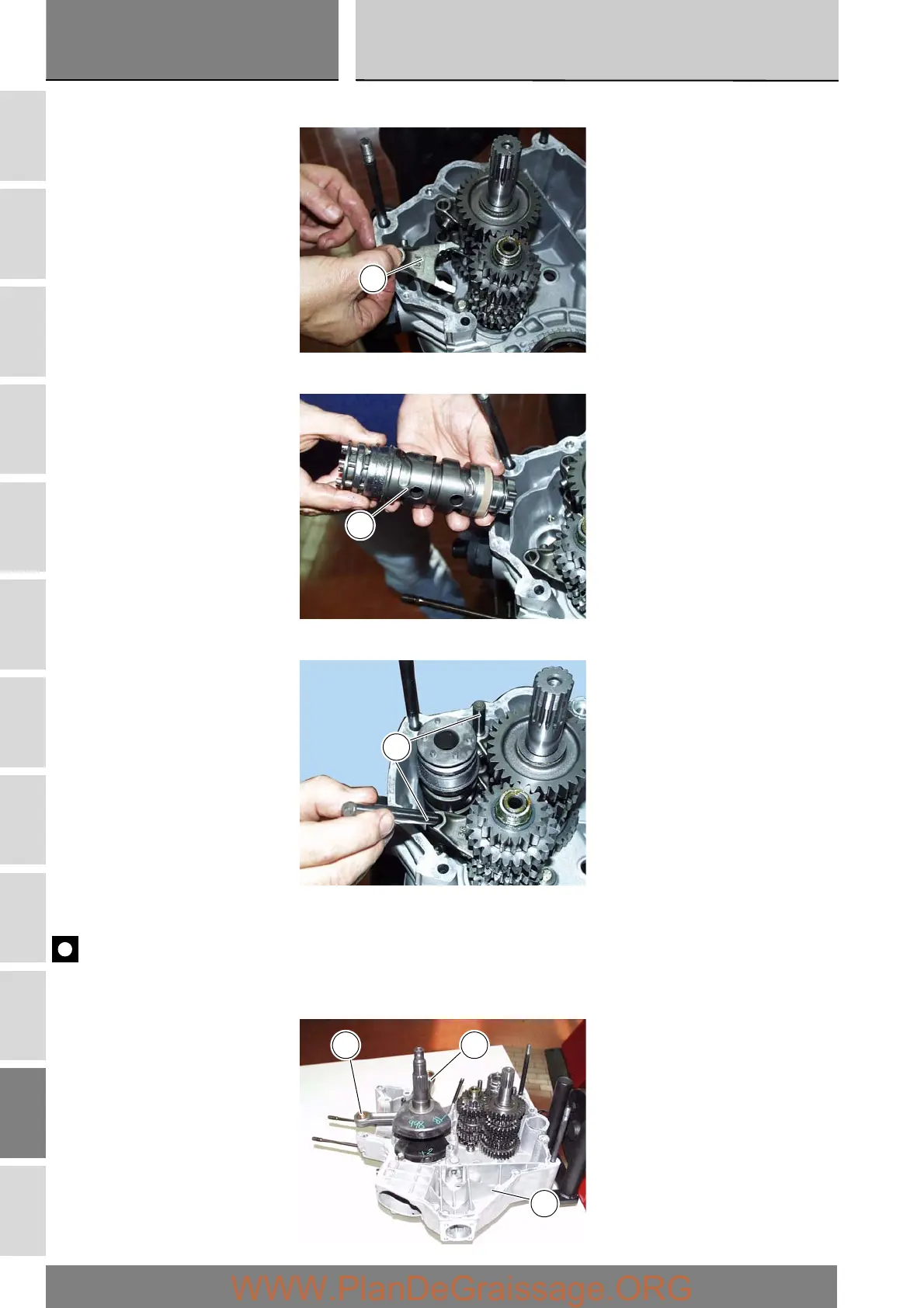

Install the 5
th
-6
th
gear selector fork (E) in the input shaft driven gear.
Install the selector drum (F) in the crankcase with calculated shim thickness.
Fit the pins (G) in the previously installed selector forks.
Fit the shimmed crankshaft into the right-hand crankcase half, positioning the connecting rods (H) in correspondence with the
relative cylinder barrel seats.
Important
Make sure that the connecting rods (H) are correctly positioned in the respective cylinder seats. Incorrect positioning of the
connecting rods at this stage will inevitably lead to the need to re-open the crankcase.
E
F
G
H
H
H
