section
N 9.1
1831098/1098S - M.Y. 2007 - edition 00
Engine
Removal of external components

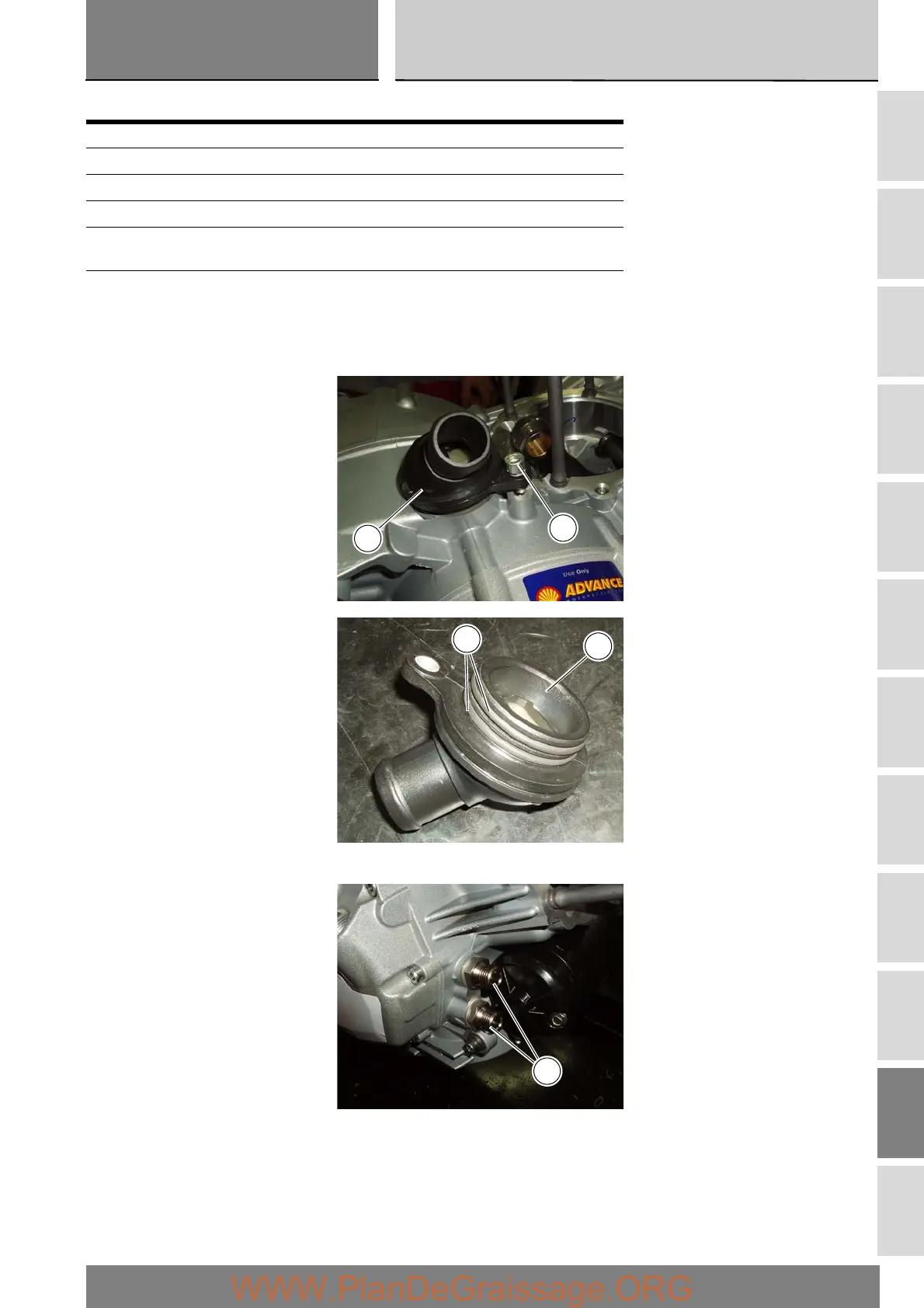

Unscrew the bolt (17) and remove the oil breather valve (1) with the O-rings (2). Check the condition of O-rings (2) and renew
them if necessary.
Unscrew and remove the oil inlet and outlet nipples (8) from the right-hand crankcase half and recover the seals (27).
Operation Section reference
Remove the engine from the frame N 1
Remove the lubrication system N 2.1
Remove the oil filter cartridge D 4
Remove the cylinder head assemblies and
the timing parts
N4.2
Remove the cylinder barrel/piston
assemblies
N5
1
17
1
2
8
