Frame

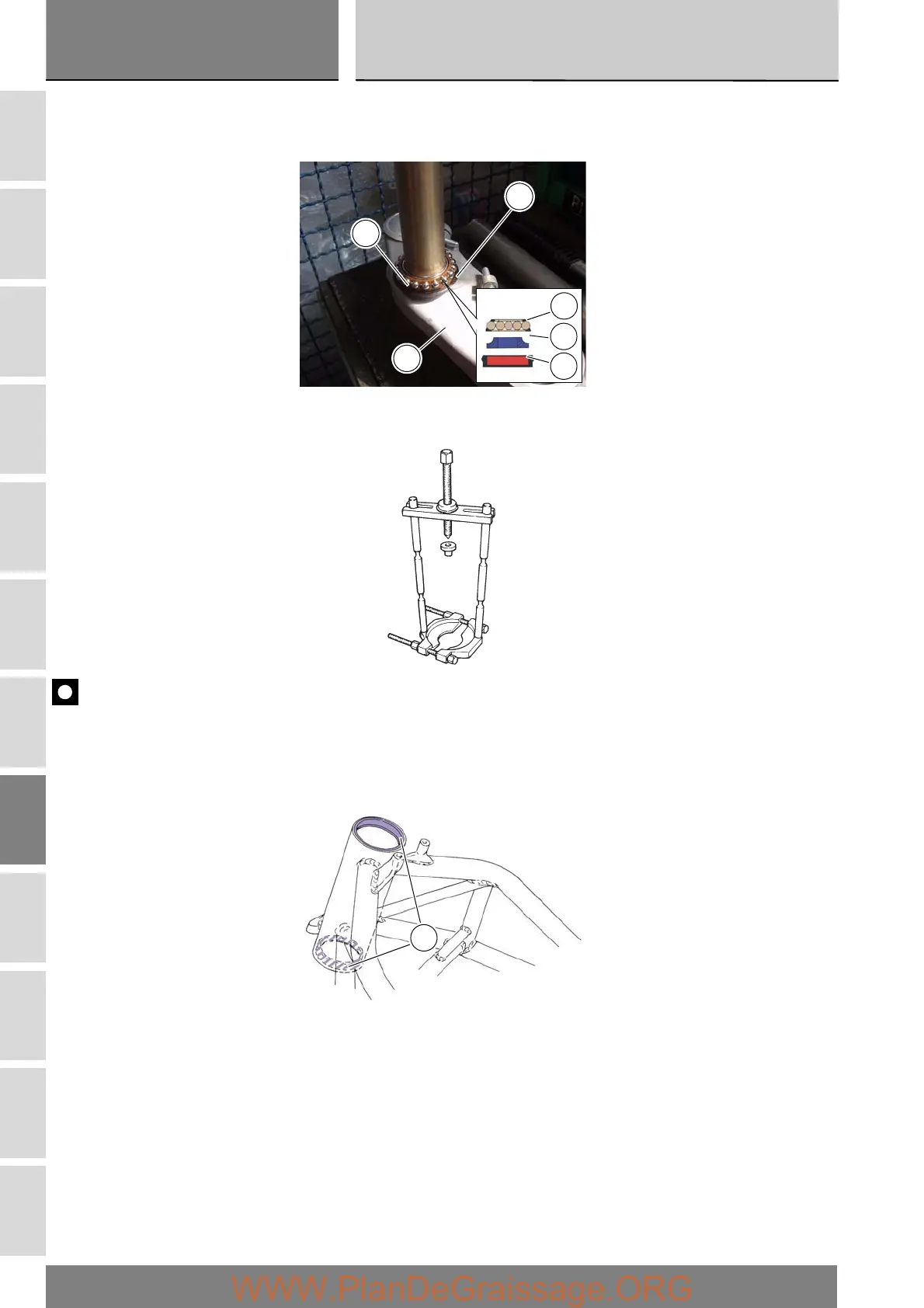

Remove the bottom yoke (1) complete with the steering stem from the frame tube.
Remove the ball race (B) of the lower bearing (3).
The inner race (A) of the lower bearing (3) and the relative oil seal (2) will remain on the steering stem.
Using a universal puller (of the type shown in the figure) remove the ring (C) from the steering stem, taking care not to damage
the seat.
Important
Once removed, the seals (2) and the bearings (3) must not be refitted.
Using a suitable drift, remove the outer bearing races (C) from the steering head. Proceed with extreme care to avoid damaging
the seats.
B
A
2
3
2
1
C
