Engine

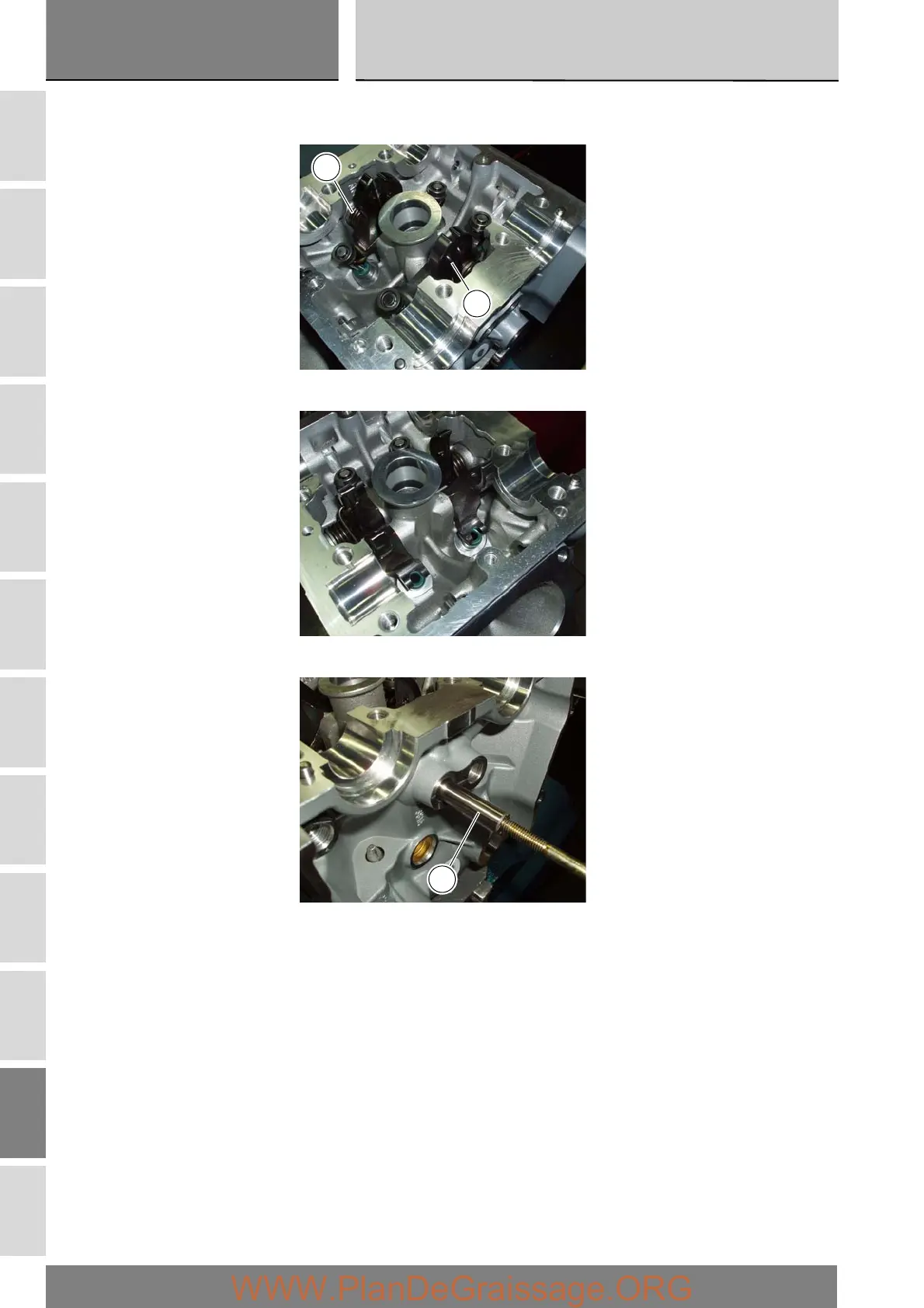

Using accessory (C) of the rocker arm spring tensioning kit 88713.2069 installed between the spring and the inner wall of the
cylinder head, move the straight end of the rocker arm return spring (19) and (18) and insert it in the drilled shaft.
Use the shaft to slide the end of the spring into its final position.
Using an M5 bolt, withdraw the shafts (1) of the closing rocker arms (3) on the exhaust and intake sides.
19
18
1
